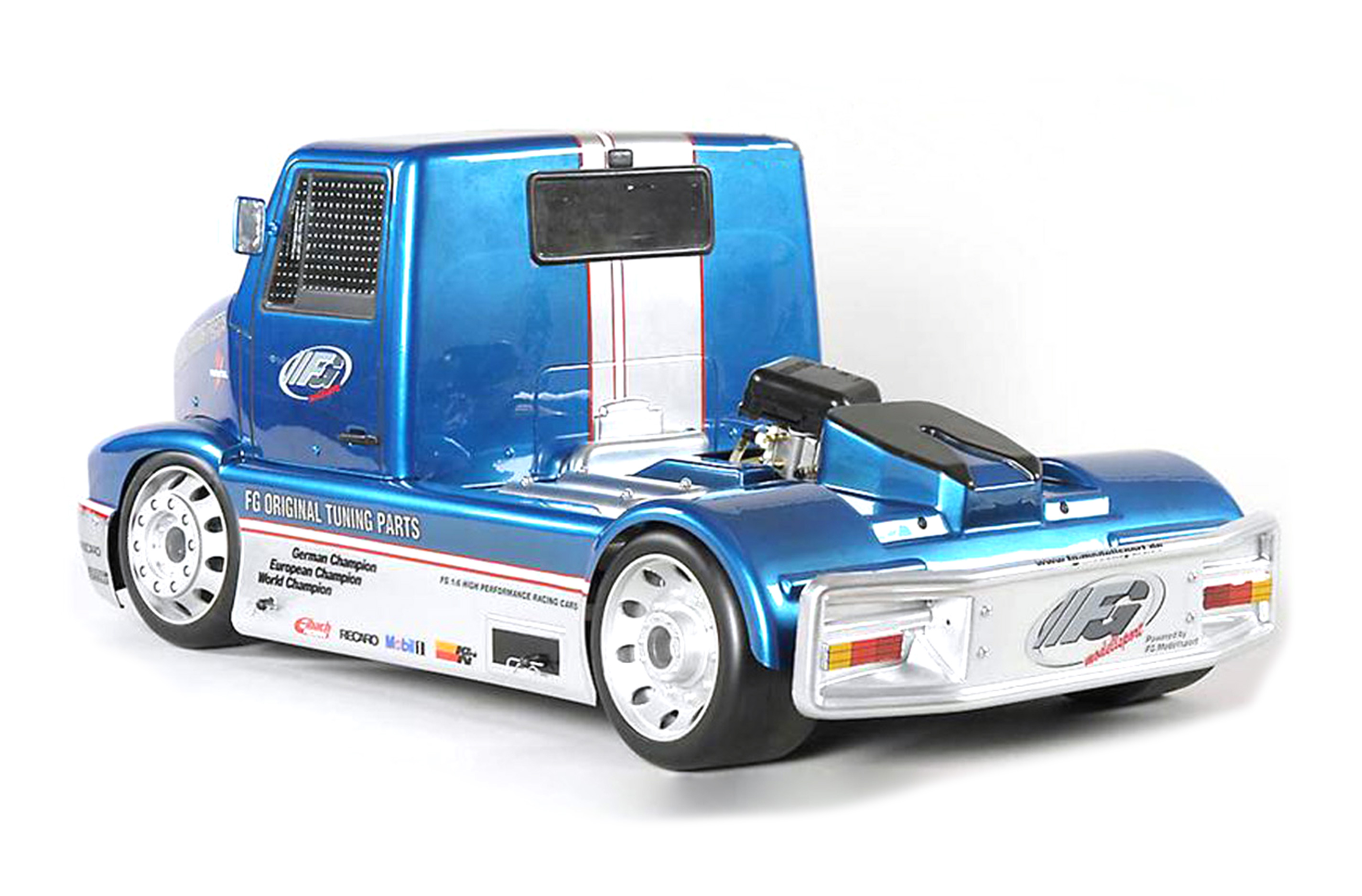

FG Sportsline Truck 4WD with FG Super Race Truck body shell clear

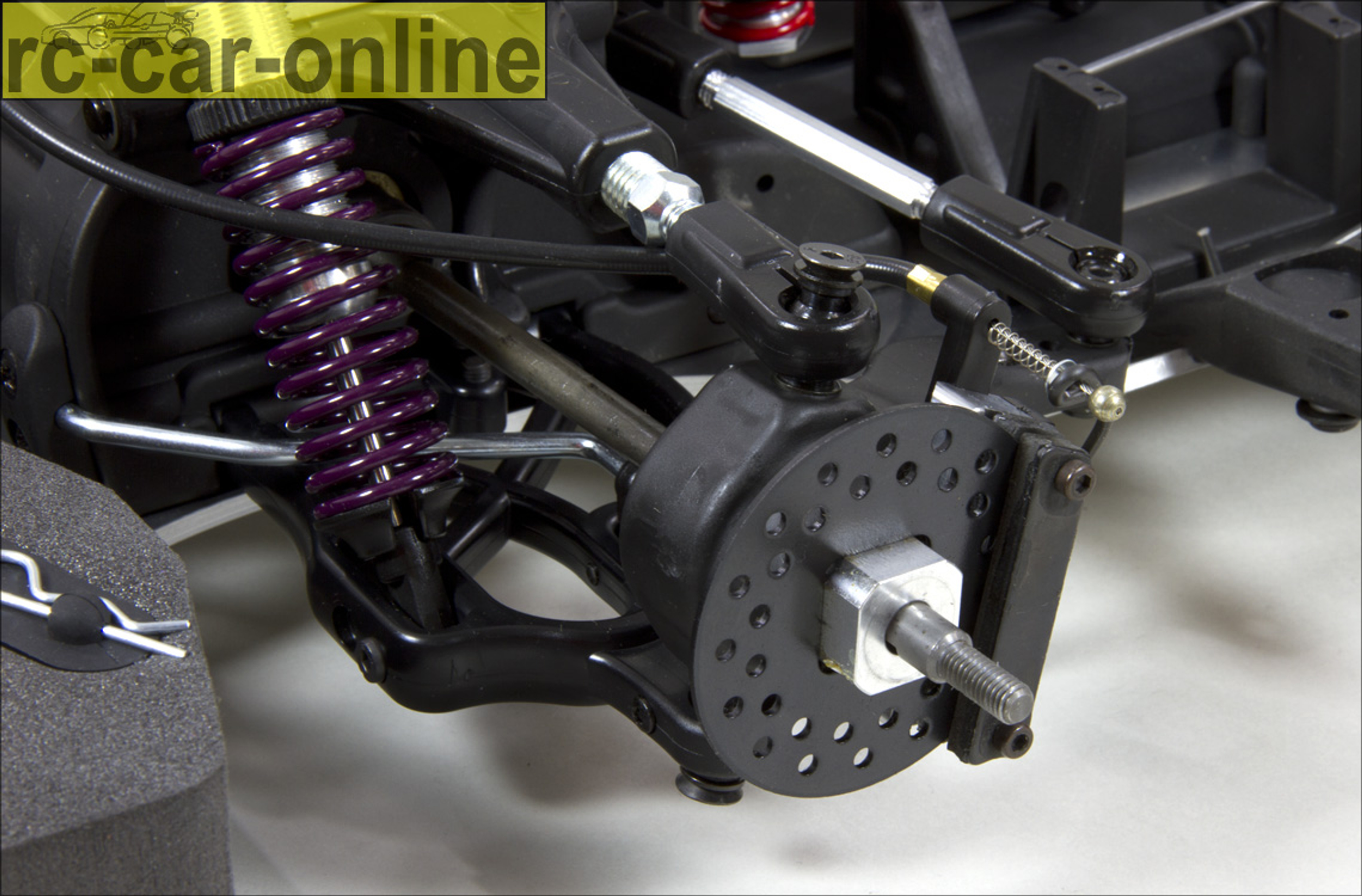

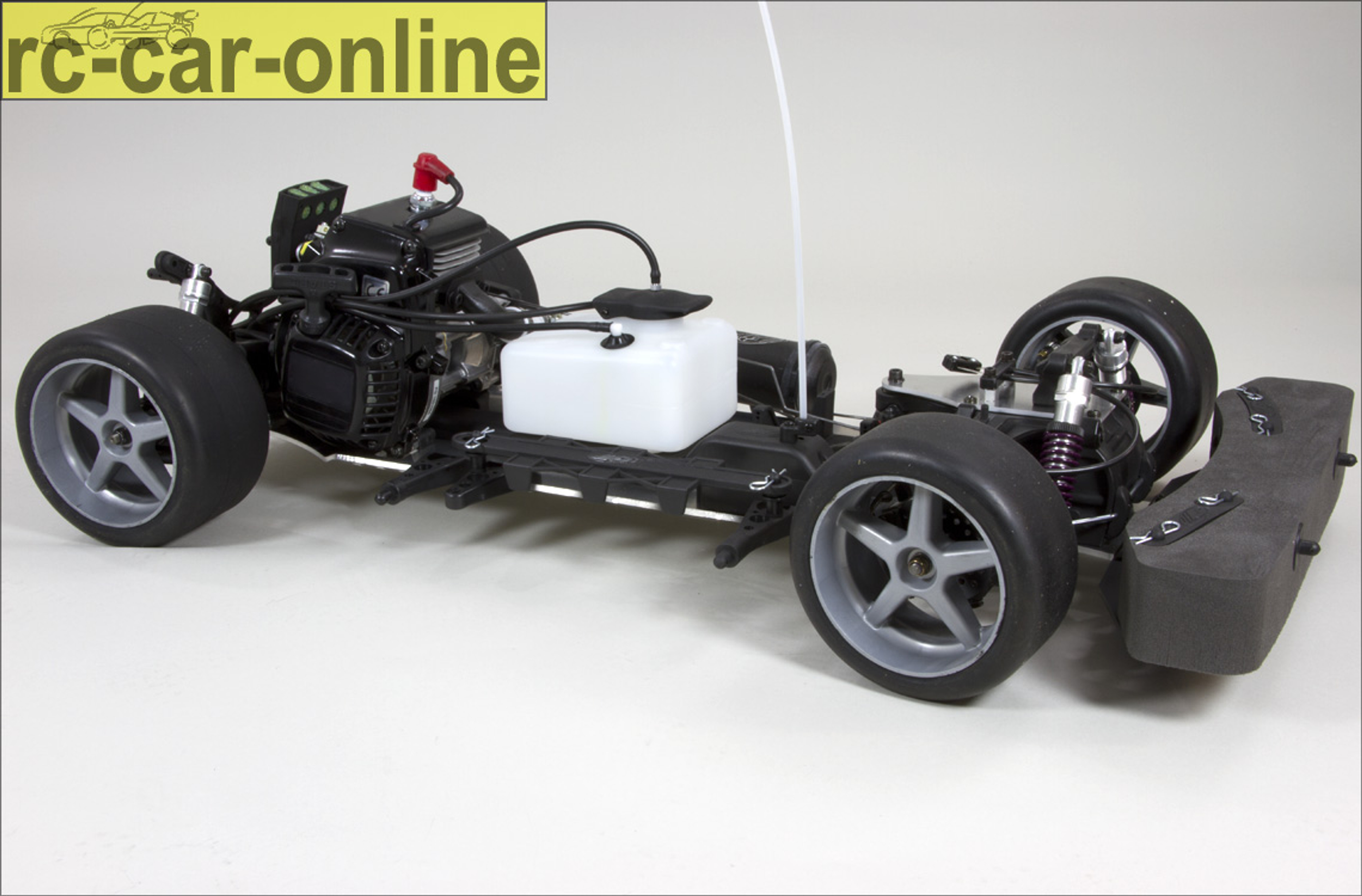

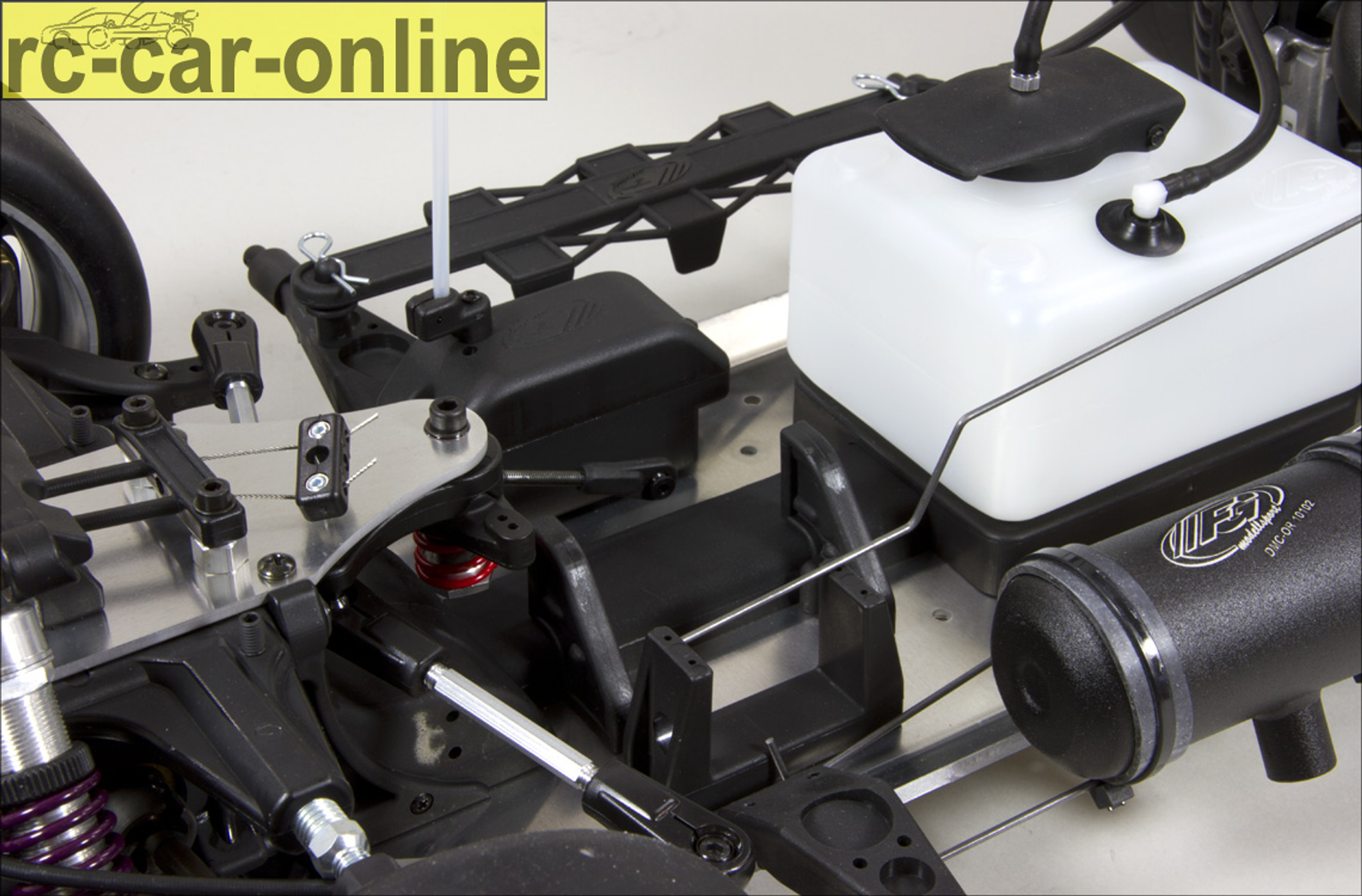

Former: "Cat" Truck.The Sportsline 08 quality at a reasonable price for beginners. The Sportsline series is ideal for car modellers whose main focus is not just the chassis, but rather the combination of chassis and body shell.You can select the car with complete RTR-equipment from the options menu. RTR-equipment RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed. Transmitter: Reflex Wheel Pro III 2,4 GHzReceiver: Mini BECHigh power servo for throttle and brakeLargescale servo for steeringTx-battery, rx-battery Technical description:The models are built on a 4mm alloy chassis with double wishbones at front and rear axle. All borings of the alloy chassis are countersunk to prevent the screw heads from bearing out. The models are serial equipped with the 2-damper front axle which guarantees an optimal traction of both front wheels. At the front/rear axle you can adjust through track rods or adjusting screws with right-/left-handed thread the king pin angle, trailing effect and toe-in. Further equipment points are front disk brakes, differential gear, easy-running FG ball drive, alloy brake calliper with big brake disk, stabilizer bar front and rear, tuned pipe muffler, Evo gas tank, rear brace, 20T steel pinion, spark plug cap suppression cover, latest version (Evo) oil-pressure shock absorbers with volume control and external adjusting ring for the initial spring preload. All rotating parts as shafts, axles and clutch bells a.s.o. are supported by ball bearings. The models are equipped with a powerful 23 cm³ combustion engine. The engine needs a 2-stroke petrol oil mixture. One tank filling gives you about 45 minutes driving fun. The power is transmitted over the well-tried system: from the engine over the 2-block clutch over radial tooth wheels on to the rear axle which is equipped with the bevel differential gear with pluggable axles. RC-plate with receiver box.HT-Edition? HT-Edition means: this version comes with a big set of spare / option parts included. Steel pinions - Non-standard sizesEach of two different ratios are supplied with.Modul: m=1,5Value: 62,60 EURAlloy engine mount bigCNC machined alloy engine mount, direkt replacement for the stock plastic part, heat and tweak resistant. They come with all necessary hardware included. Value: 64,95 EUR Alloy spur gear carrierUse for 39T - 44 teeth spur gears.Value: 39,90 EUR Ball bearing set, sealed, set of 14The seal rings on sealed ball bearings keep dirt and dust out of the bearings. They are therefore particularly suitable for use in dirty and dusty environments.Value: 59,90 EURTotal value: 227,35 EURDimensions:Length: 880 mmWidth: 435 mmHeight: 380 mmWheelbase: 530 mmTrucks in action!

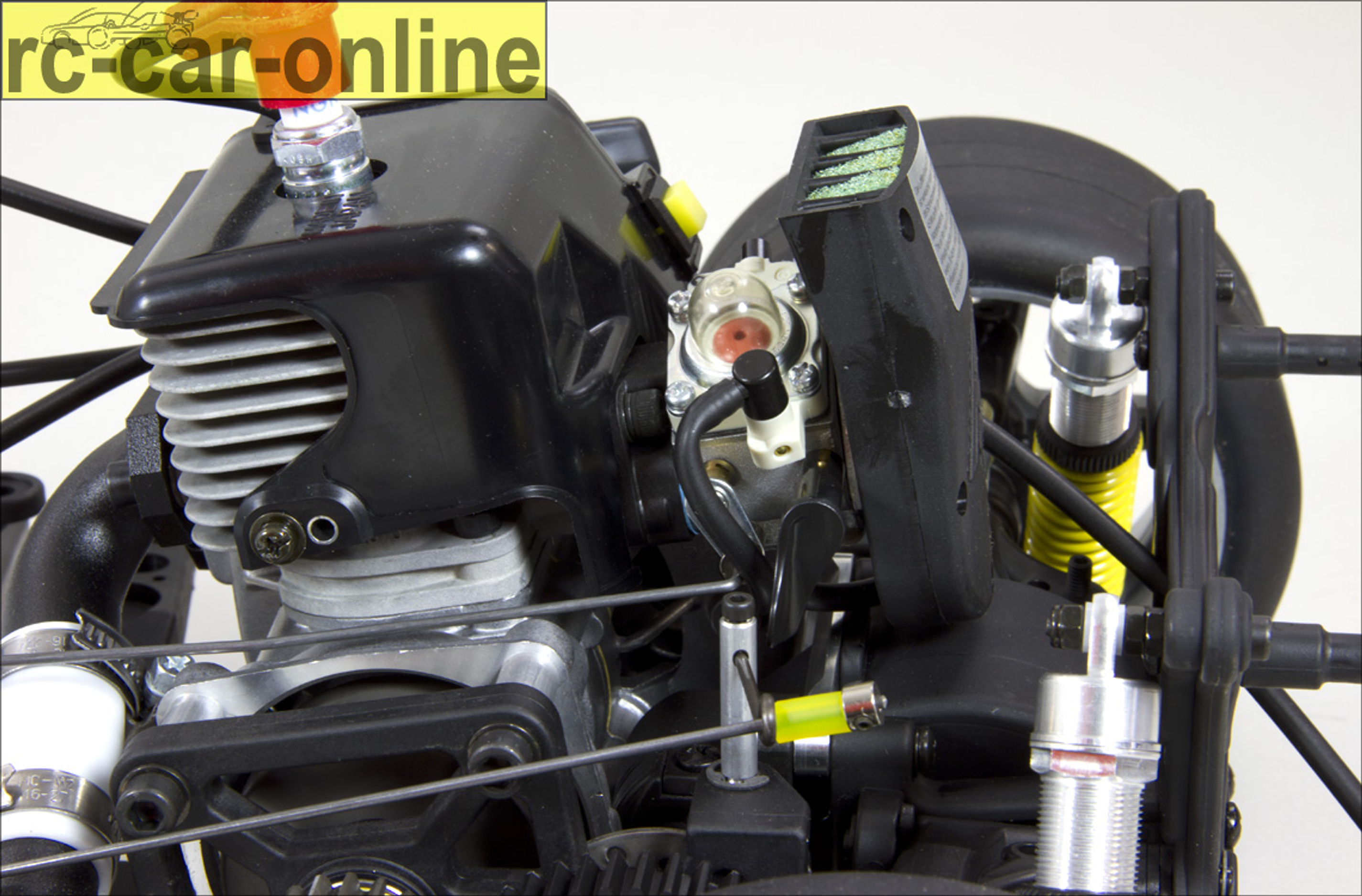

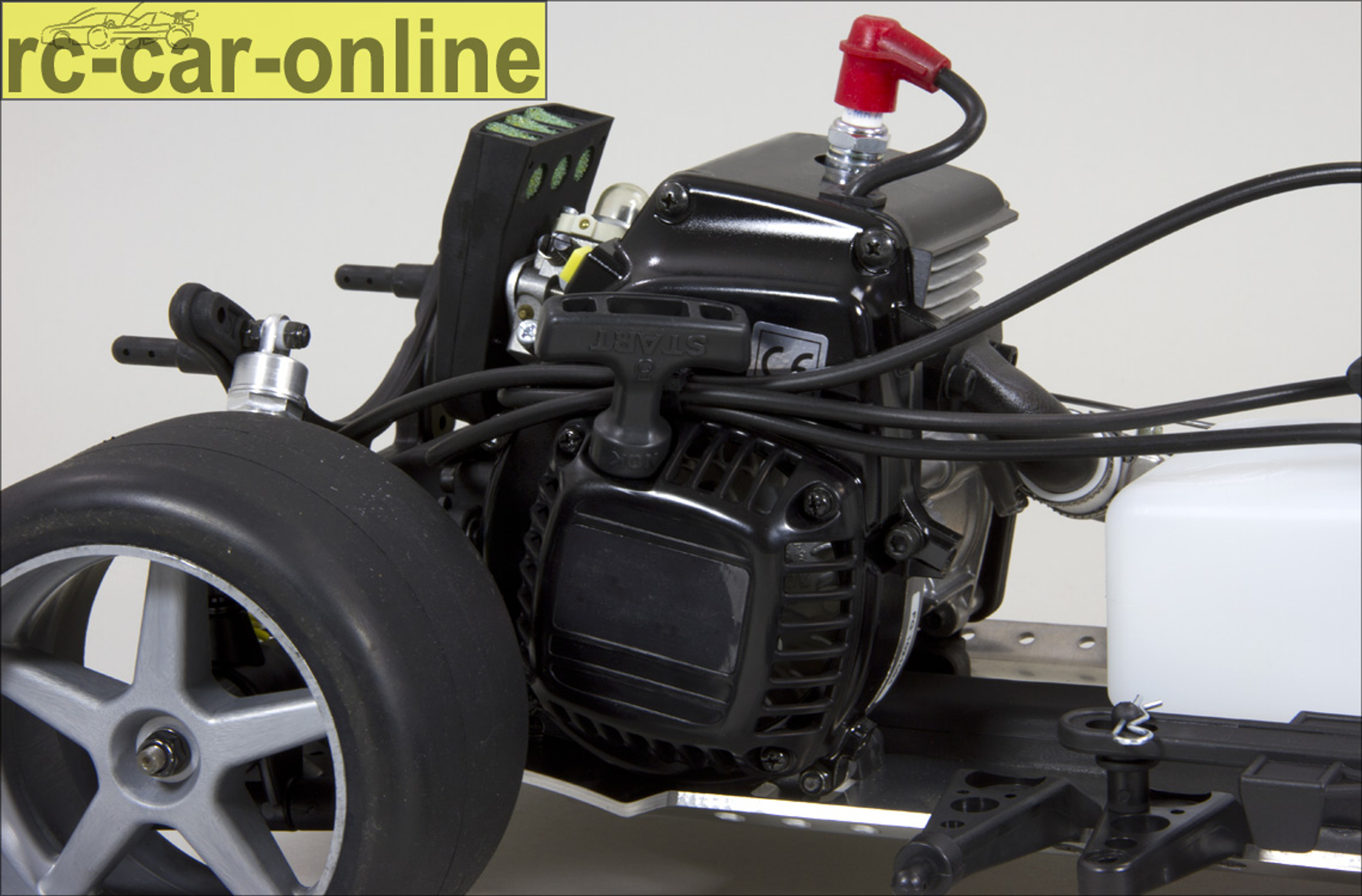

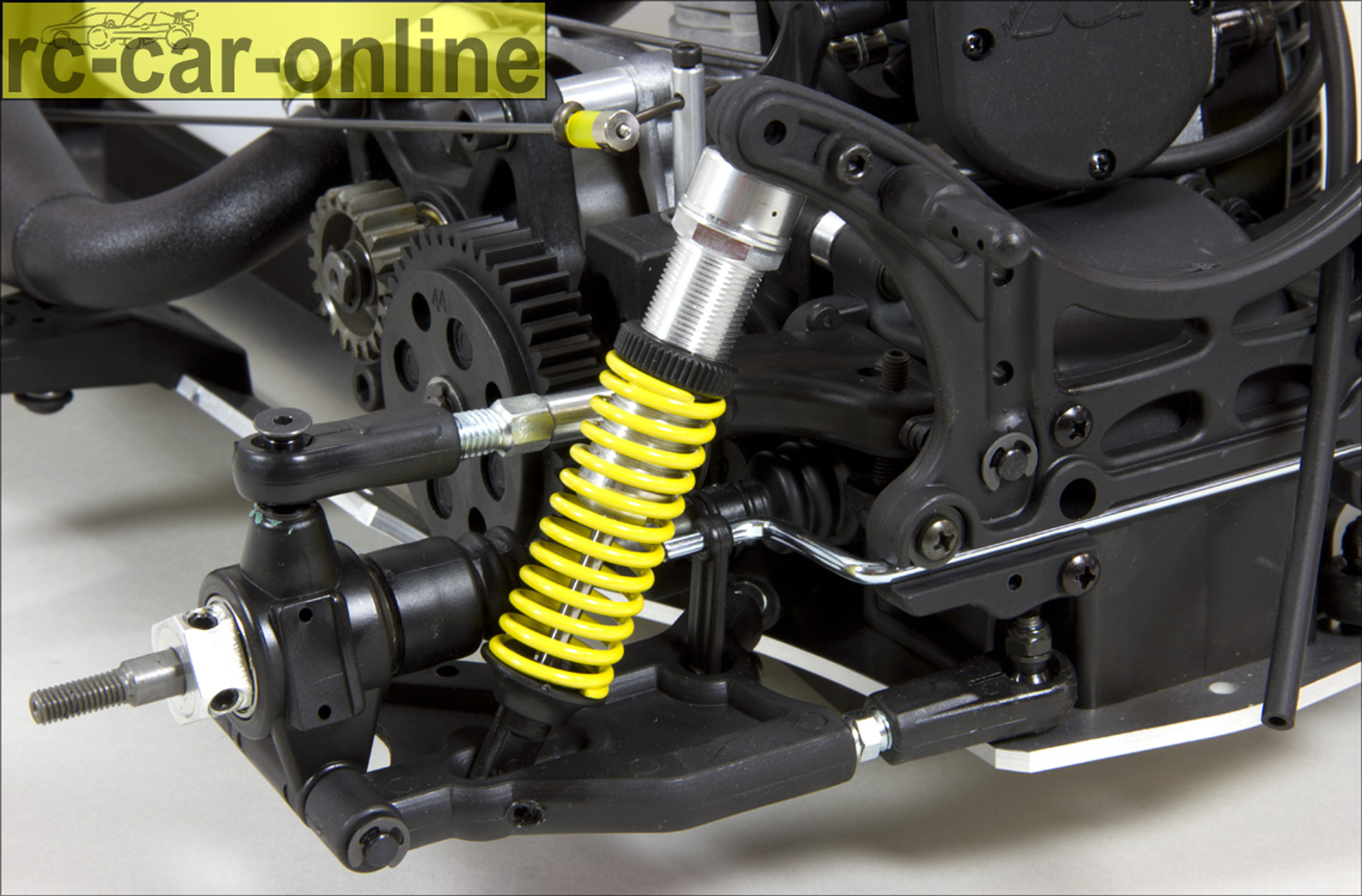

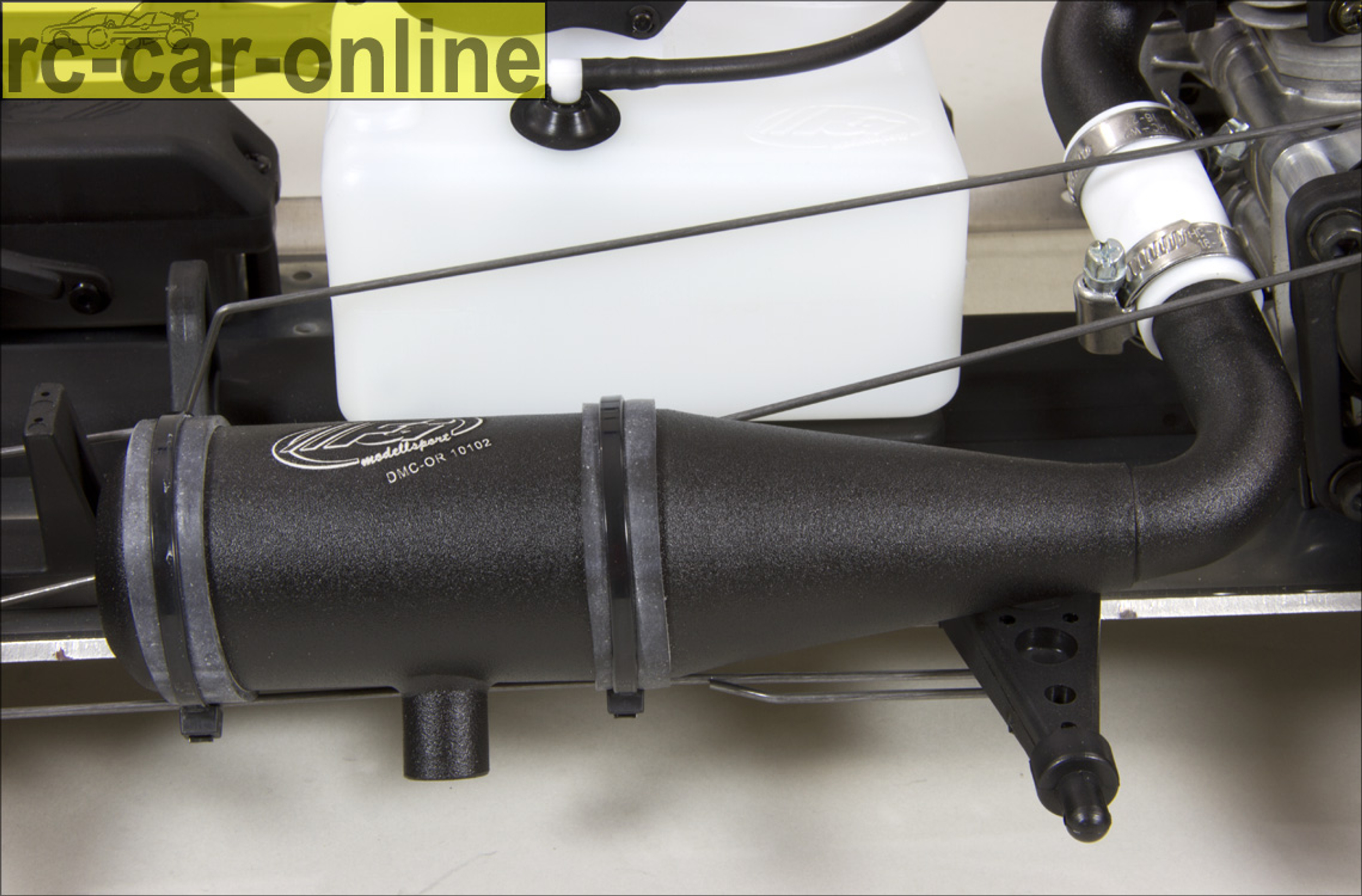

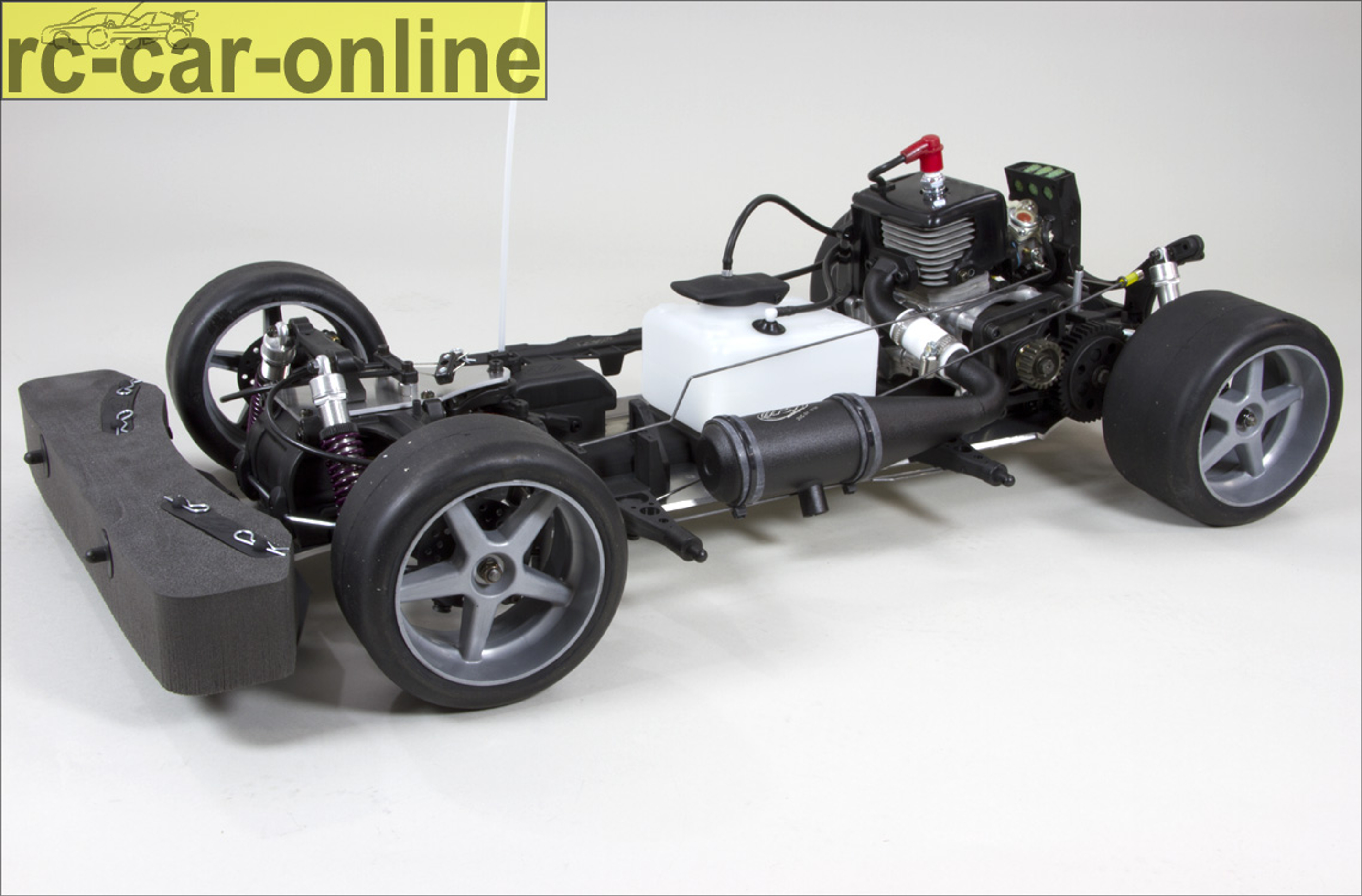

After the successful introduction of the 4WD Sportsline chassis for 1:5 FG Touring and Sports cars this chassis is now available also for Race Trucks. Mainly rookies benefit from the advantages of an all-wheel drive. Traction also on dusty asphalt, therefore no pulling of the rear section, all around just pure driving fun. These are just some advantages of the four-wheel drive.You can select the car with complete RTR-equipment from the options menu. RTR-equipment RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed. Transmitter 2,4 GHzReceiverHigh power servo for throttle and brakeLargescale servo for steeringTx-battery, rx-battery The body shell is clear.The Race Truck chassis is equipped with a double wishbone suspension, toe-in, camber and castor can be adjusted. The robust all-wheel drive gives the vehicle a neutral driving performance on almost every surface. We set big value on durability using strong materials as well as operator convenience. The FG Sportsline class is the affordable, but still high-quality entry into the RC car sport.Technical description:Equipped with a powerful 26 cm³ engine, Tuning pipe, tank with snap closure, 2 differential gears, front disk brake and a lot more. Highlight however remains the approved FG all-wheel drive. Maximal traction as well as simple handling, grip in curves - these are the advantages only a four-wheel drive can offer. With a wheelbase from 530 mm.Dimensions:Length: 880 mmWidth: 435 mmHeight: 380 mmWheelbase: 530 mm Trucks in action!

After the successful introduction of the 4WD Sportsline chassis for 1:5 FG Touring and Sports cars this chassis is now available also for Race Trucks. Mainly rookies benefit from the advantages of an all-wheel drive. Traction also on dusty asphalt, therefore no pulling of the rear section, all around just pure driving fun. These are just some advantages of the four-wheel drive.You can select the car with complete RTR-equipment from the options menu. RTR-equipment RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed. Transmitter: Reflex Wheel Pro III 2,4 GHzReceiver: Mini BECHigh power servo for throttle and brakeLargescale servo for steeringTx-battery, rx-battery The body shell is clear.The Race Truck chassis is equipped with a double wishbone suspension, toe-in, camber and castor can be adjusted. The robust all-wheel drive gives the vehicle a neutral driving performance on almost every surface. We set big value on durability using strong materials as well as operator convenience. The FG Sportsline class is the affordable, but still high-quality entry into the RC car sport.Technical description:Equipped with a powerful 26 cm³ engine, Tuning pipe, tank with snap closure, 2 differential gears, front disk brake and a lot more. Highlight however remains the approved FG all-wheel drive. Maximal traction as well as simple handling, grip in curves - these are the advantages only a four-wheel drive can offer. With a wheelbase from 530 mm.HT-Edition? HT-Edition means: this version comes with a big set of spare / option parts included. Steel pinions - Non-standard sizesEach of two different ratios are supplied with.Modul: m=1,5Value: 62,60 EURAlloy engine mount smallCNC machined alloy engine mounts, direkt replacement for the stock plastic parts, heat and tweak resistant.Value: 54,90 EURDriveshaft bootsProtect ball drive as well as cardan drive against dirt. 4 pairs / 8 piecesValue: 42,90 EURAlloy spur gear carrierUse for 39T - 44 teeth spur gears.Value: 39,90 EURTotal value: 200,30 EURDimensions:Length: 880 mmWidth: 435 mmHeight: 380 mmWheelbase: 530 mmTrucks in action!

These models are now available with a high-torque brushless engine. Surface conditions with maximum grip assumed speeds above 100 km/h can be reached and steered controlled. According to the installed fourwheel drive the models are easy to handle and to steer. E stands for electric power which is equivalent to extremely high torque, high speed and all this without any engine noise. The Sportsline models are equipped with a powerful brushless engine and a speed control. This control can be regulated simply via transmitter or optionally via the program card. T2M standard equipment brushless motor and ESC:  - ESC 150A controller 6S  - Brushless motor 6SYou can order a motor/ESC combination with 8S for an additional charge.- ESC 200A, 3-8S LiPo, BEC 8A - Brushless Motor 8SYou can select the car with complete RTR-equipment from the options menu. RTR equipment RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed. ll E-Power versions need for the final assembling LiPo batteries and the suitable charger. For an unproblematic mounting we recommend to use LiPo batteries with a max. length 150mm and a width of 50mm. The model is delivered with an EC8 connector system.

Genuine FG spare/option part.Due to the high torque load on the bonding of tires on largescale cars, checking the bonding from time to time and re-glueing (y0067) if necessary is unavoidable.Measures:Diameter: 145 mmWidth: 80 mmRim with 18 mm square drive.

Ghost Rabbit GR1 - the new 4WD metal model from UFRC incl. RTR equipment! TT56112 Top Tuning Monster Brushless Motor 700 kV ESC Spektrum 160A Regler 2x Voltmeter Spektrum DX5C Smart 5CH DSMR radio control incl. SPMSR515 receiver 2 pieces y1570 CYS S0650 large scale servo, 55 kg/0,11 sec for Steering 2 pieces y2009 Top Tuning Digital pro Servo 25 kg for Differential lock Required for completion: 2 pieces of 4S batteries with EC8 connectors (total max. size for both batteries combined: length 193 mm × width 125 mm × height 100 mm) Charger for LiPo batteries Its external dimensions are not much bigger than those of a 1/6 car, yet its wheelbase is on par with many 1/5 cars and it has no overhangs at all; its tires fit a monster truck (230 mm diameter!). This results in amazing handiness for a large scale car combined with outstanding off-road capability. The GR1 comes out of the box almost as an all-metal vehicle. Tuning parts to reinforce the model are no longer necessary. Center and rear differential come standard with mechanical locks which can be activated independently by the radio. Of course, a radio system with the appropriate number of channels is required to use this feature. The dimensioning of all parts is designed for great reliability, e.g. the ball joints in the lower trailing arms are standardized industrial swivel bearings with an inner diameter of 6 mm, and the driveline can handle 12S hands down. But according to our experience, 12S operation is simply unnecessary. Oversized drive shafts also on the front axle are machined and hardened steel with fixed joints at both ends and sliding piece for length compensation. The tires feature a vulcanized fabric reinforcement made of Kevlar; ballooning is actually a thing of the past for them. Thanks to Kevlar, the fabric belt can be relatively thin, so the tires are soft and flexible despite the fabric. Aluminum servo arms for all 4 servos (steering and differential locks) are standard. The levers of the two steering servos are adjustable. Each steering servo has its own adjustable servo saver. A stainless steel adjustment tool is included. The Ackerman rod features four ball bearings. Shock absorbers with 8 mm piston rods and hard anodized shock bodies. All drive gears milled from steel and hardened. Two voltmeters can be optionally installed in the receiver box to monitor the traction batteries. The cage can be removed with only 4 clips, but even that is not a requirement for battery replacement. Ghost Rabbit GR1 (1/5 4WD solid rear axle)Main features of the 4WD Ghost Rabbit GR1: The strength of the components supports 12S power The wheelbase of 1/5 scale cars: 565mm The length of 1/6 scale cars: total length 790mm (when equipped with wheels with a diameter of 230mm) The whole car uses mostly metal parts, so there is no need to spend a lot of money on option parts later. The weight of the GR1 ready to run with 2x batteries and 700KV motor is about 22 kg.But if you think now that this is a ponderous steamroller, you better think again. A "Tank on speed" is a better description. Despite the weight, wheelies can be called up at any time thanks to the appropriate gear reduction, even if the controller is only set to level two of four in acceleration (punch).At the same time, the possible twisting of the chassis is almost like that of a crawler. With the diff locks activated, the GR1 is almost unstoppable. Technical details: Drive train: full-time 4WD with 3 differentials (remote rear and center differential lock as standard equipment) Front suspension type: double a-arm IFS Rear suspension type: solid rear axle with 4-link suspension Scale: 1/5 Wheelbase: 565mm Front track width: 420mm Rear track width: 420mm Caster angle of kingpin: 20 degrees Front camber (adjustable): 3 degrees Toe-in (adjustable): 3 degrees Rear toe-in (not adjustable): 0 degrees Rear camber (not adjustable): 0 degrees Approach angle: about 90 degrees Departure angle: about 90 degrees Break-over angle: about 45 degrees Minimum turning radius: about 1.5 meters The maximum steering angle: about 30 degrees Maximum gradient: about 50 degrees Slide slope: about 40 degrees Maximum articulation: about 80 degrees (need to remove the front and rear anti-roll bars and loosen the angle limit screws of the front shock mounting beam) Lower trailing arm length (center/center of spherical bearings): 257 mm Chassis ground clearance (wheel diameter 230 mm): 115 mm Ground clearance under rear differential (wheel diameter 230 mm): 75 mm The maximum external dimensions of the vehicle body (length × width × height): 790 mm × 525 mm × 380 mm (with wheels of 230 mm diameter and 100 mm width) Gear ratio range: 9:1 to14.9:1 (The gear ratio can be changed by different gear set in the center gear box) Factory standard gear ratio: 14.9:1 Gear modulus: M1.5 Number of locking differentials: 2, servos for activation not included Locking differential positions: center and rear Wheel size: diameter 230 mm; width 100 mm. The tires feature Kevlar fiber belt to prevent ballooning and can handle 12S power Wheel drive size: 24 mm hex Front shocks mounting length (two-stage springs): 170 mm Front shock travel: 53 mm Rear shock mounting length (two-stage springs): 212mm Rear shock travel: 80 mm Calculated top speed: 8S power: 80 km/h (based on a 750KV motor) 12S power 110 km/h (based on a 680KV motor) (The maximum speed is calculated based on the electronic components and the actual numbers may vary) Weight of empty frame (excluding wheels and electronic components): 13.5 kg Total weight: approx. 22 kg Maximum payload of the frame: about 10 kg (do not press heavy objects or let people sit on the frame for driving operations, which may cause damage to parts) Lubricants parameters Front shock oil (silicone oil): 100cst Rear shock oil (silicone oil): 100cst Front differential oil (silicone oil): 300,000 cst Center differential oil (silicone oil): 300,000 cst Rear differential oil (silicone oil): 300,000 cst Front gearbox (grease): Swedish molybdenum disulfide high temperature grease (blue) Center gear box (grease): Swedish molybdenum disulfide high temperature grease (blue) Rear axle gearbox (grease): Swedish molybdenum disulfide high temperature grease (blue) (The above lubricants parameters are for reference only, and can be replaced according to your driving habits and environment) Frame materials and parts specifications, etc. Chassis Material: AL6061-T6 (aluminum) Processing technology: CNC machining, no stamp-out processing Surface treatment: hard anodizing and hardening Specifications: thickness 5 mm Front skid plate plate (standard configuration) Material: AL6061-T6 (aluminum) Processing technology: CNC machining non-casting Surface treatment: hard anodizing and hardening Specifications: thickness 5 mm Lower trailing arms Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: anodizing Specifications: The thickness of the part is 30 mm Front gear box housing Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: anodizing Specification: wall thickness 4 mm Center gear box housing Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: anodizing Specifications: wall thickness 2.5 mm Rear axle Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: anodizing Specifications: wall thickness 4 mm Front spindles Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: hard anodizing and hardening C-Hubs Material: AL6061-T6 (aluminum) Processing technology: CNC machining Surface treatment: hard anodizing and hardening Differential ring and pinion (front and rear) Material: high-strength billet gear steel, non-powder metallurgy Processing technology: CNC gear hobbing machine Heat treatment process: carburizing and hardening Modulus: M1.5 Center gear box spur gears Material: high-strength billet gear steel, non-powder metallurgy Processing technology: CNC gear hobbing machine Heat treatment process: carburizing and hardening Modulus: M1.5 Differential spider gears Material: steel-based powder metallurgy Processing technology: hot isostatic pressing sintering Heat treatment process: vacuum Differential locking clutch Material: high-strength billet carbon steel Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Front suspension drive shaft (CVD structure at the wheel end, universal joint structure at the gear box end) Material: high-strength billet carbon steel Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Specifications: CVD end shaft diameter 12 mm; gearbox end universal joint maximum outer diameter 32mm Center drive shaft Material: high-strength billet carbon steel Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Specification: shaft diameter 12 mm Rear universal drive shaft Material: high-strength billet carbon steel Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Specifications: The outer diameter of the spline telescopic shaft is 12 mm; the maximum diameter of the universal joint is 32 mm. Rear axle shafts Material: high-strength billet carbon steel Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Specifications: shaft diameter 12 mm, non-pin positive locking structure, shaft reaches into the differential planetary gear. Front bumper Material: high strength nylon Roll cage Material: high strength nylon Specification: diameter 10mm Car body shell panels Material: Polycarbonate Specifications: thickness 1.5 mm Clear Receiver box: nylon Front and rear shock absorption main parts Upper shock cap Material: AL6061-T6 (aluminum) Processing technology: CNC Surface treatment: anodizing Shock body Material: AL6061-T6 (aluminum) Processing technology: CNC Surface treatment: hard anodizing and hardening Specification: barrel diameter 28mm Shock spring Material: piano wire Surface treatment: black nickel plating Specification: front 2.8mm/rear 2.5mm Shock piston rod Material: high-strength carbon steel Processing technology: high precision grinding Heat treatment: carburizing and hardening Specification: diameter 8mm Spring perches Material: nylon Piston Material: nylon Processing technology: CNC machined, no injection molding Sealing ring Material: silicone Front shock mounting beam: AL6061-T6 (aluminum) Rear shock tower: AL6061-T6 (aluminum) Servo fixing frame: AL6061-T6 (aluminum) Steering rods Material: high-strength carbon steel Specification: 6mm Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Steering linkage rods Material: high-strength carbon steel Specification: 6mm Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Rear axle stabilizer bar Material: high-strength carbon steel Specification: 6 mm Processing technology: CNC Heat treatment process: carburizing and hardening Surface treatment: electroplating Ball heads Material: SUS304 stainless steel Specification: ball diameter 11 mm Front lower A-arm: high-strength nylon Center gear box mounts: AL6061-T6 (aluminum) Lower trailing arm brackets: AL6061-T6 (aluminum) Adjustable steering servo arm (comes as standard!): AL6061-T6 (aluminum) (adjustment angle 20 degrees) Wheels Specifications Diameter: 230 mm Width: 100 mm Hexagonal drive: 24 mm Material Rim: high-strength nylon Tire skin: natural rubber (Kevlar fiber belted) Liner: high elastic sponge Hex drive: The hex insert is powder steel metallurgy, and the outer reinforcement ring is SUS304 stainless steel All vehicle screws: 10.9 grade carbon steel General components: Wheels: Most 1/5 scale wheels with 24 mm hex drive and a diameter ranging from 190-230 mm and a width of 70-100 mm can be used. When the diameter is greater than 190 mm and the width is greater than 80 mm, the steering angle needs to be limited, and the steering angle has to be adjusted on the transmitter to about 75%. It is recommended to use wheels with a diameter of 230 mm and a width of 100 mm to maximize the performance and handling of the car. Differential spider gear assembly: HPI BAJA 5B compatible Nylon ball joints: 5ive-T size (ball diameter 11 mm) Electronic components configuration ESC Specification: 8S-12S Quantity: 1 Motor Specifications: market standard motor for 1/5 vehicles, such as 5692/56112/58113 When using 8S power, the motor KV value should be lower than 800. When using 12S power, the motor KV value should be lower than 600. When selecting a 12S motor, you should accurately consult whether it supports 12S power. Improper selection may cause serious damage to the motor. The diameter of the motor shaft is 8 mm, and the depth of the flat surface is 1 mm. The protruding length of the motor shaft should be greater than 20 mm and less than 40 mm. Quantity: 1 Battery 8S: 2 groups of 4S (6,000-12,000 mAh) in series 12S: 2 sets of 6S (6,000-12,000 mAh) in series When choosing a battery, it should be noted that the three-dimensional size of the two batteries together cannot be larger than the size of the battery compartment. Quantity: 2 packs Battery compartment size: length 193 mm×width 125 mm×height 100mm Steering servo: Specification (15T output shaft): 50-85 kg Use common 1/5 model servos (mounting bolt pattern 17.5 mm×75 mm). Quantity: 2 Differential lock servo Specification (25T output shaft): 15-35 kg Use common 1/8 model steering servos ( mounting bolt pattern 10.0 mm × 49.5 mm), it is recommended to use 25 kg steering gear, but it should not be stronger than 35kg, which may easily cause the displacement of the differential lock limiter and change the pulling stroke. The differential lock function fails. Quantity: 2 Remote control Type: car Channels: 5 channels or more (steering; throttle; differential lock uses two channels; car lighting (optional) channel) Quantity: one set Charger Type: Equipped with lithium battery balancing function Specifications: 4S or above Quantity: one set Battery safe storage container Common tools Tool type: Allen key wrench; Hex wrenches; circlip pliers Allen wrench Sizes (metric system): 1.5 mm; 2.0 mm; 2.5 mm; 3.0 mm; 4.0 mm; 5.0 mm Hex wrenches Sizes (metric system): 7 mm; 8 mm; 9 mm; 10 mm Circlip pliers Type: external circlip pliers (when gripping the handle of the circlip pliers, the front end should open outward) Specifications: The diameter of the tip is less than 1mm, and the use range is 4-10mm

Genuine FG spare/option part. Radio plate suitable for all FG 1:6 2WD Off-Road models except Leopard. Vintage version.Contents:1 piece
