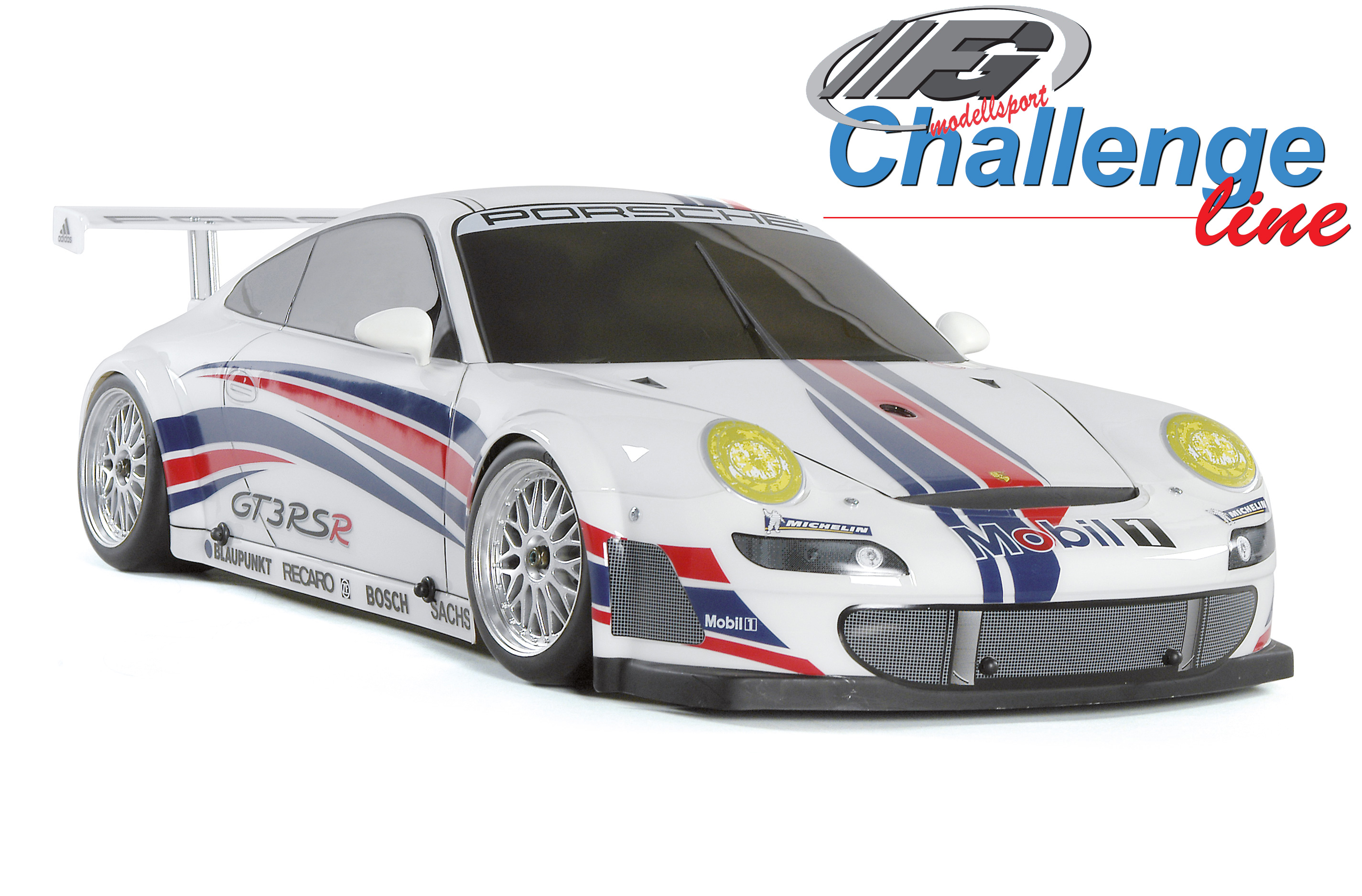

FG Challenge Line 2WD-510 with Porsche GT3 RSR body and 26 cm³ FG engine
Product number:
fg_190002wd_porsche.2
EAN:
4058575120865
Zubehör
%
Ideal work stand with extra wide tripod up to 100 kg. load capacity with excellent stability, even on uneven (!) urface.Specially made support mechanism, individually adjustable width from 115 mm to 375 mm for most RC cars from 1/10 to 1/5 scale. incline from 0 to 90° Quickly folded and loaded For easy storage, as well as for transport completely foldable! (Carrying bag available!)Height adjustment of the support from 635 mm to 1000 mm and inclination from 0-90° Length of the support surface 386 mm Bis zu 100Kg belastbar! Support mechanism continuosly adjustable in width Due to various adjustment options, the Top Tuning CAR STAND offers the optimal possibilities for making adjustments or maintenance work on the RC car. The load capacity and stability are beyond doubt with a load limit of 100 kg and the extremely stable tripod. The up to 90 ° adjustable slant shows your RC car at events and presentations, as well as in your assembly room to its best advantage! 6.5 kg. weight Pivoting bracket Height adjustable from 69 to 104 cm Basic frame is made of steel, painted or chromed Car bracket is made of aluminum and stainless steel A tool holder TT1030/01 is also available as an accessory in our shop selection.
Hobbythek car bag for 1/5 carsFits for all 1/5 models for example: FG-: HPI-; Mecatech FW01-; Carson-; Smartech-; Conrads-; Harm-; RS5-; Lauterbacher a.s.oMade from extremely durable fabric, easily washable; with wrap-around shoulder belts and zipper closure.No dirt in the car boot!Dimensions:Length: 95 cmWidth: 40 cmHeight: 30 cm
Fully synthetic oil, available in three blends. 1-liter bottle.The optimal 2-stroke oil for 23-30 cm³ engines/cars Motul Racing Oil is available in three different blends: On-Road for high revving onroad cars Off-Road for cars with high torque enginesMixing ratio for 1/5 & 1/6 applications: We recommend a mix with about 4% oil, which means 200 cc of oil to 5 litres of gas (1:25 ratio). With one litre of Motul oil you can mix about 25 litres of optimal fuel for your 1/5 or 1/6 car. That's enough for well over 20 hours of driving fun! Oil / Gas Oil percent Oil per 1 liter of gasoline Oil per 2 liter of gasoline Oil per 3 liter of gasoline Oil per 4 liter of gasoline Oil per 5 liter of gasoline 1:20 5% 50 ml 100 ml 150 ml 200 ml 250 ml 1:25 4% 40 ml 80 ml 120 ml 160 ml 200 ml 1:30 3,33% 33 ml 67 ml 100 ml 134 ml 167 ml 1:33 3% 30 ml 60 ml 90 ml 120 ml 150 ml 1:35 2,86% 29 ml 58 ml 86 ml 115 ml 143 ml 1:40 2,5% 25 ml 50 ml 75 ml 100 ml 125 ml 1:50 2% 20 ml 40 ml 60 ml 80 ml 100 ml
Genuine HT spare/option part.Version V2 with new design and quieter fans.Designed by professionals, this system is extremely versatile. The HT206AC / DC Duo 2 is very easy to use with the vertically angled 4.3" color touch display. The colorful app icons allow quick and clear navigation through the menu. The charger is cooled by a total of three powerful fans, which prevent overheating even at high outside temperatures. The heat dissipation is also increased by the aluminum housing.It is possible to charge two different batteries simultaneously with different charging settings. The HT206AC / DC Duo 2 provides a total of 400 watts, 200 watts per channel. Thus, each battery can be charged or discharged individually. The battery life can be increased with the balancing function.Specifications: AC input voltage: 110 - 240VDC input voltage: 10 - 30VDC output power: 5 - 27V, 0.1 - 20ACharging Power: 2 x 200W (400W) Charge Current Range: 0.1 - 20 A x 2Discharge current range: 0.1 - 5 A x 2 Max Discharge power: 25W x2 (50W) balancer current: 500mA / cellLilon / LiPo / LiFe / LiHV cell count: 1 - 6 cellsNiCd / NiMH battery cell count: 1 - 15 cellsPb Battery voltage: 2 - 20VMax. USB output: 5V / 2ABattery Memory: 8 profilesSub-function: digital power, balancer, IR testFirmware upgrade: External mini USB deviceSize: 195 x 143 x 70 mmWeight: 1072g Content: b> 1 x HTRC HT206AC / DC DUO charger 2 x T60 on banana connector adapter 2 x Balancing Board1 x Mains cable li> 1 x Instruction manual
HTRC charger with extremely easy 1-button operation. It charges the battery types commonly used in car modeling with mains or DC voltage supply. Infinitely adjustable charging current, automatic shut-off and balancer ports for 1S - 6S batteries are built in.Output via 4 mm sockets to accept all charging cables with 4 mm banana plugs! Specifications: AC input voltage: 100 - 240V DC input voltage: 10 - 18V Charging Power: 50W Charge Current Range: 0.1 - 5 A Max balancer current: 300mA / cell LiPo / LiFe cell count: 1 - 6 cells NiCd / NiMH battery cell count: 1 - 15 cells Size: 145 x 80 x 44 mm Weight: 170 g Content: 1 x HTRC H6AC/DC charger 1 x T- connector charging cable 1 each adapters T-connector to BEC / Futaba / JR / alligator clips 1 x Mains cable 1 x DC input cable 1 x Instruction manual
Product information "FG Challenge Line 2WD-510 with Porsche GT3 RSR body and 26 cm³ FG engine"

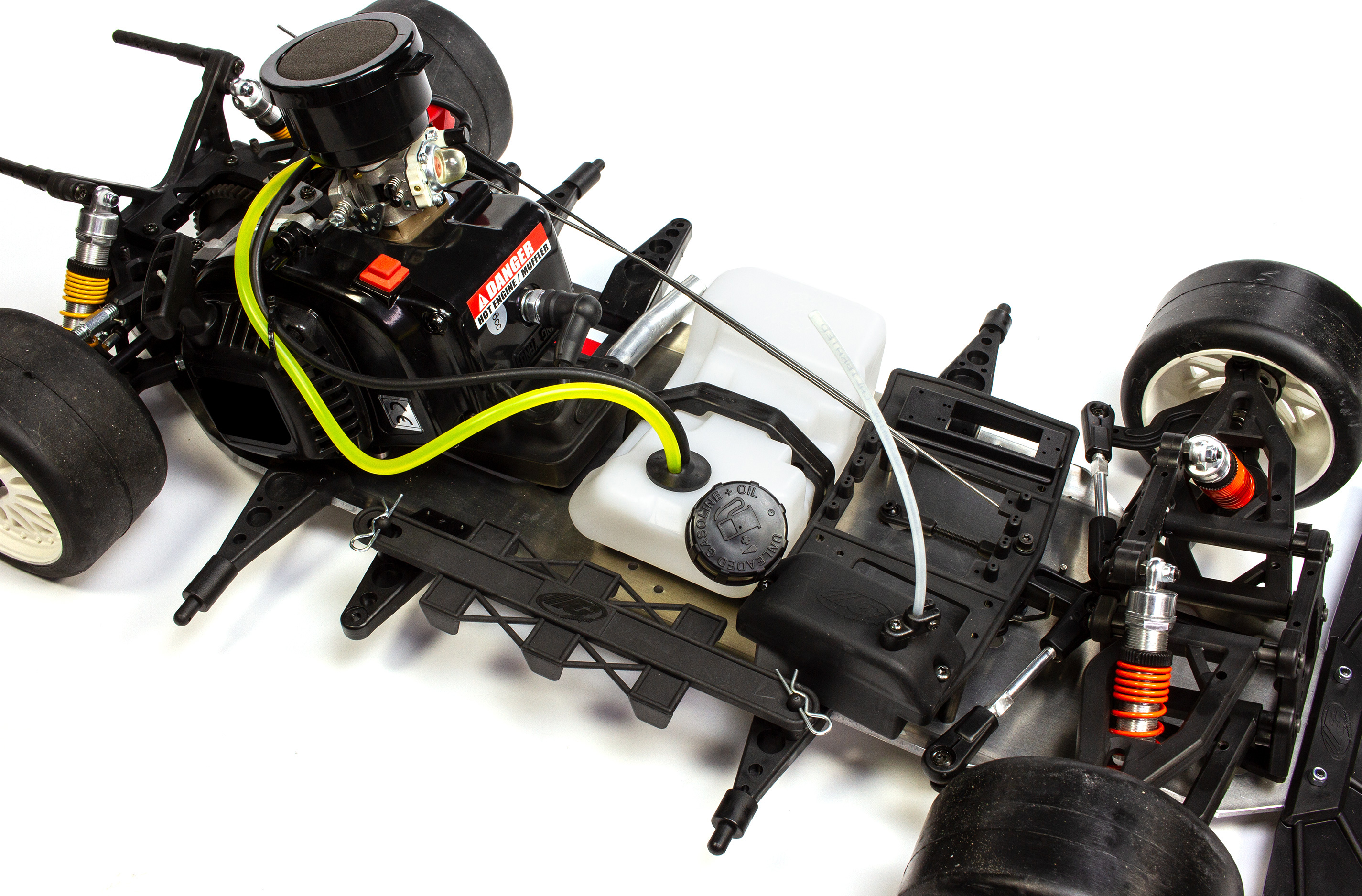

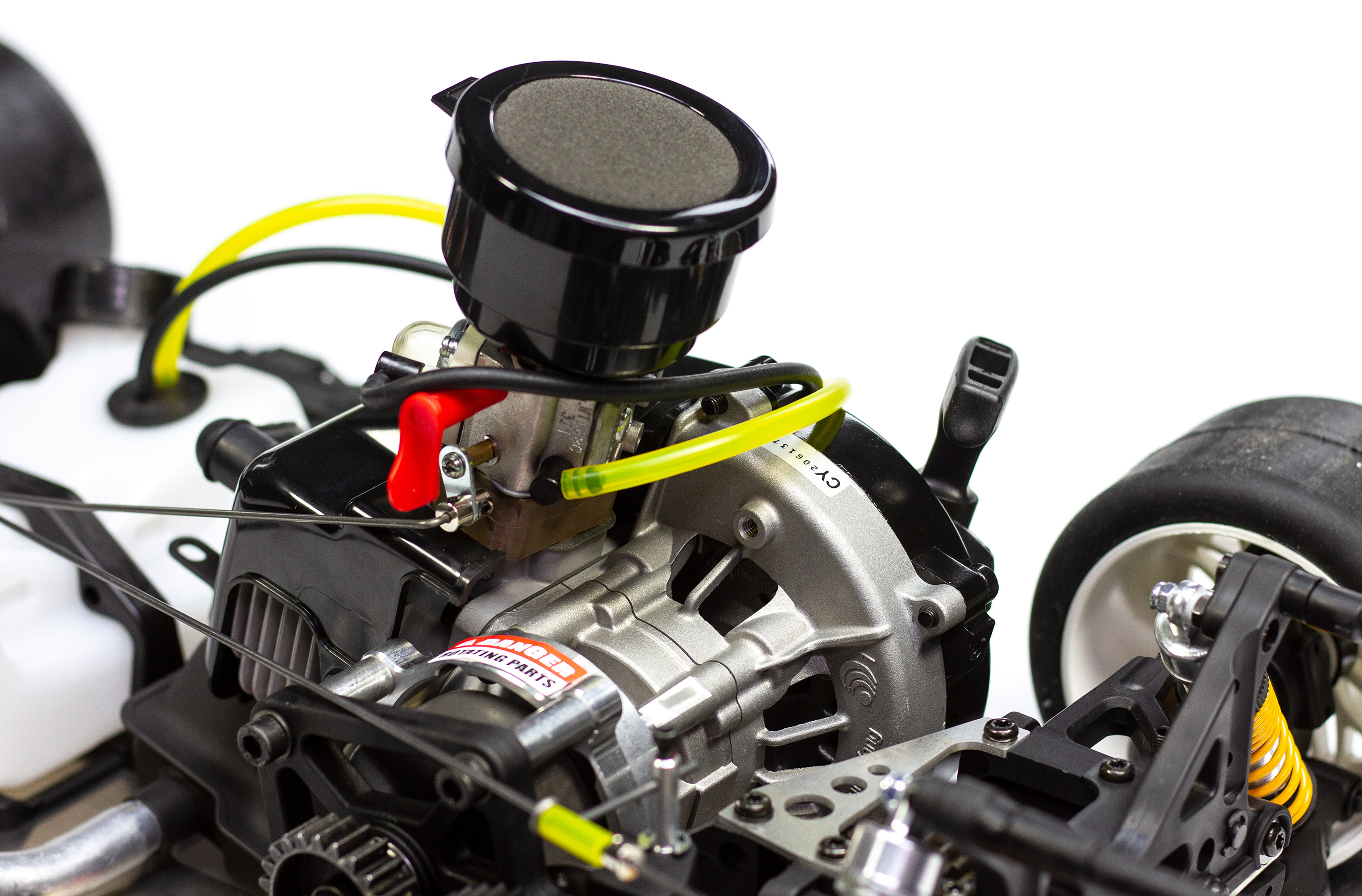

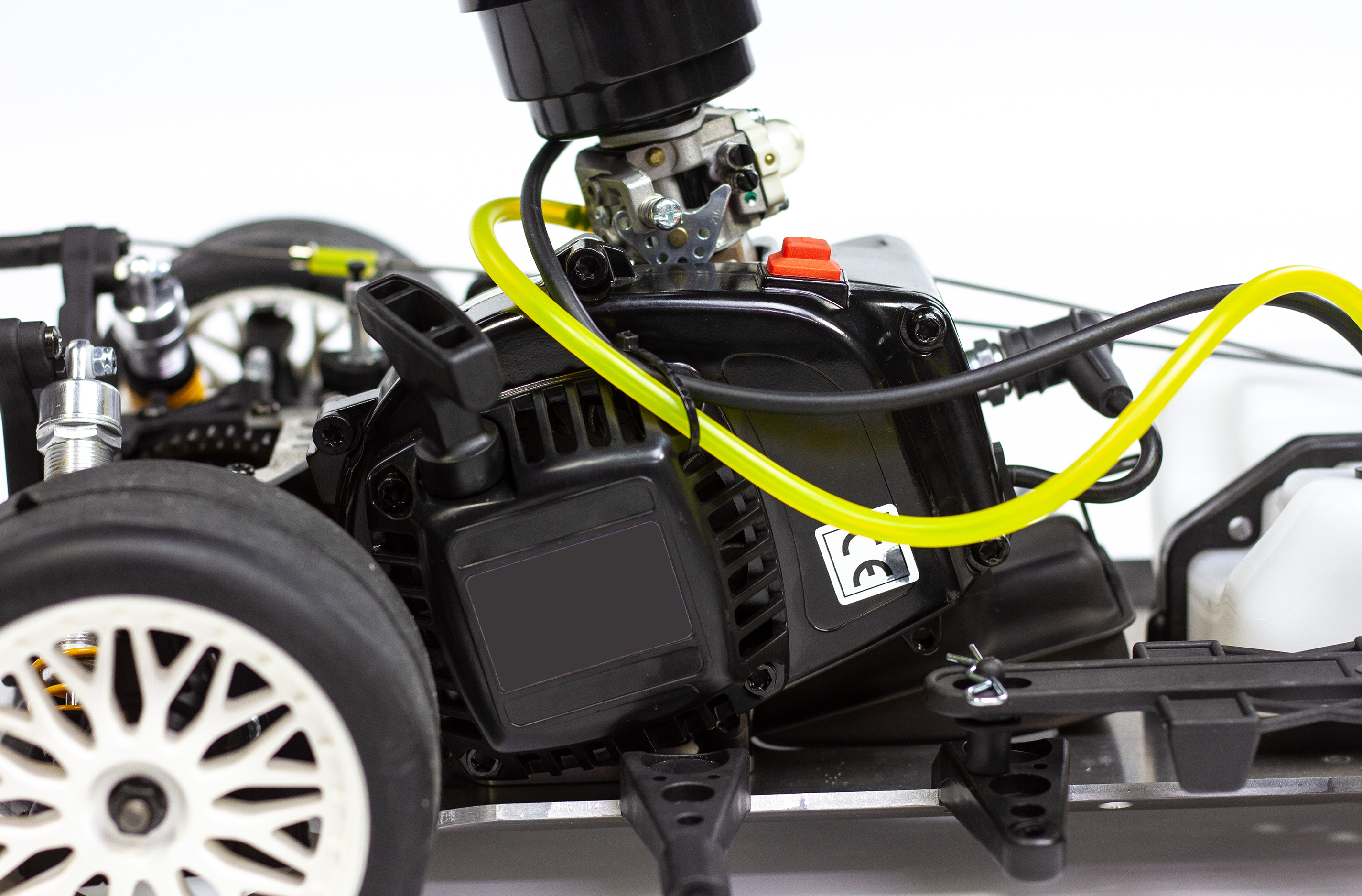

With this robust and reliable FG chassis, which is equipped with a powerful 26 cm³ combustion engine, you get the ideal entry into the fascinating "royal class" of large scale RC models as well as into the competition.

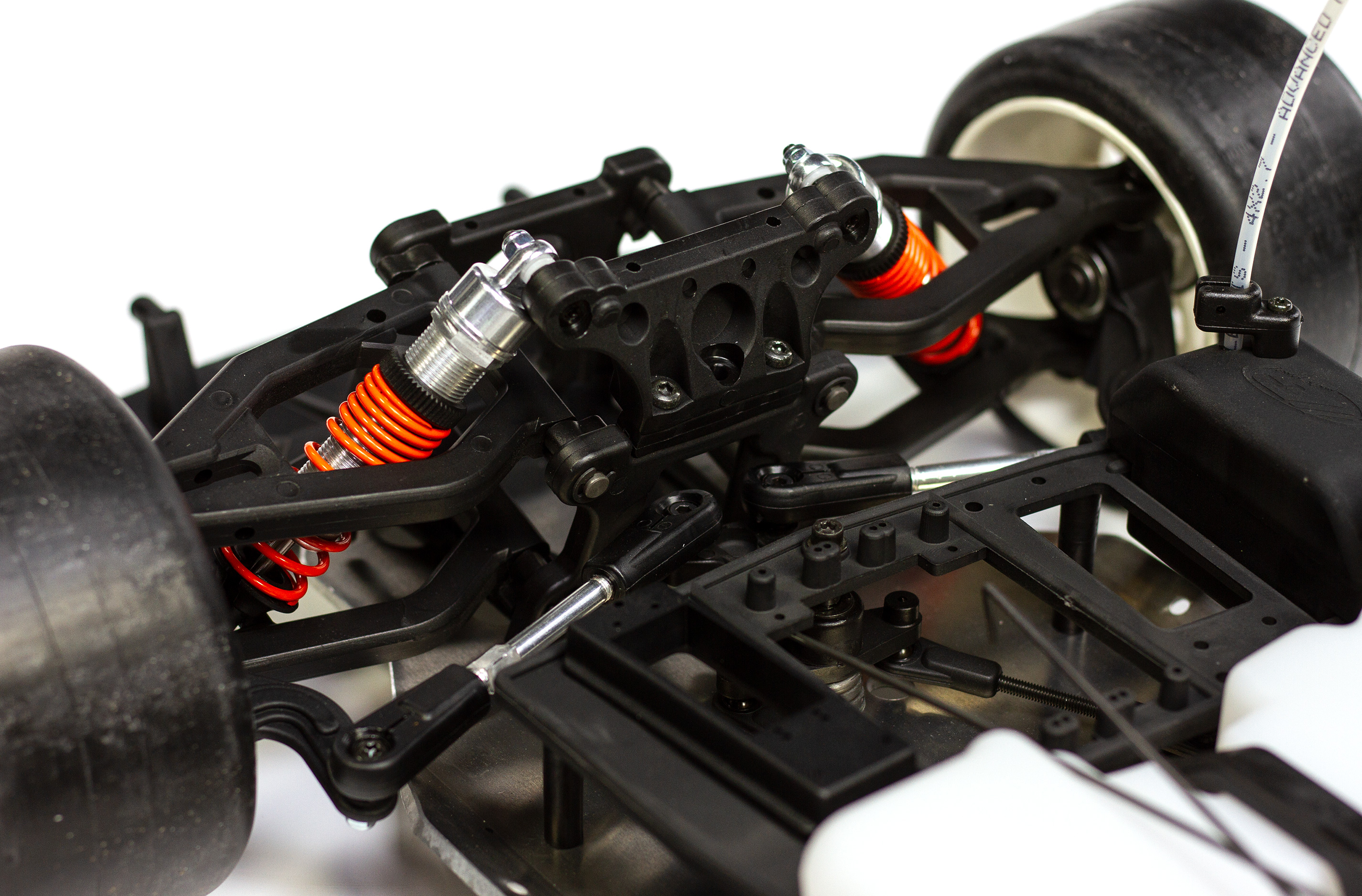

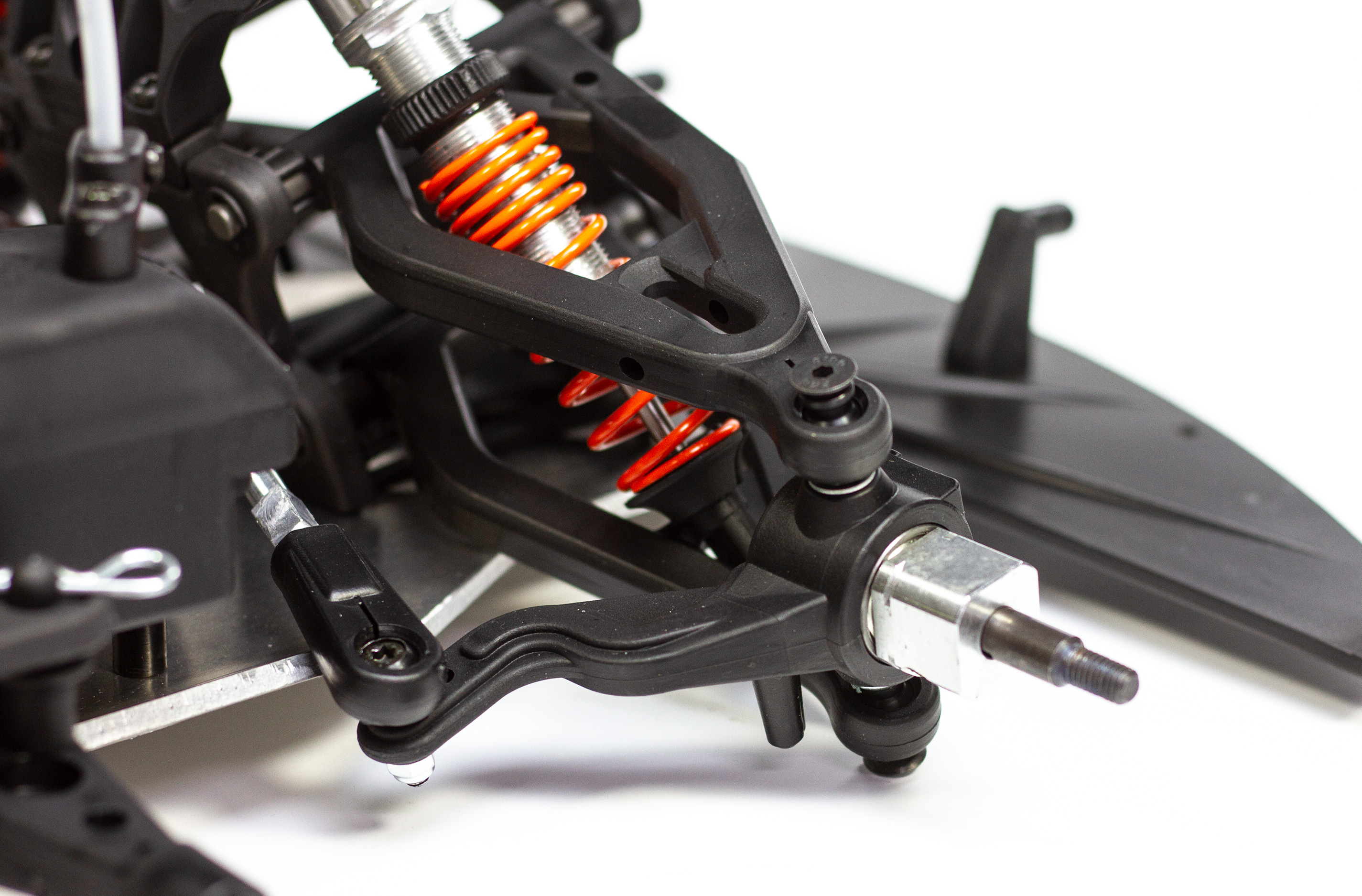

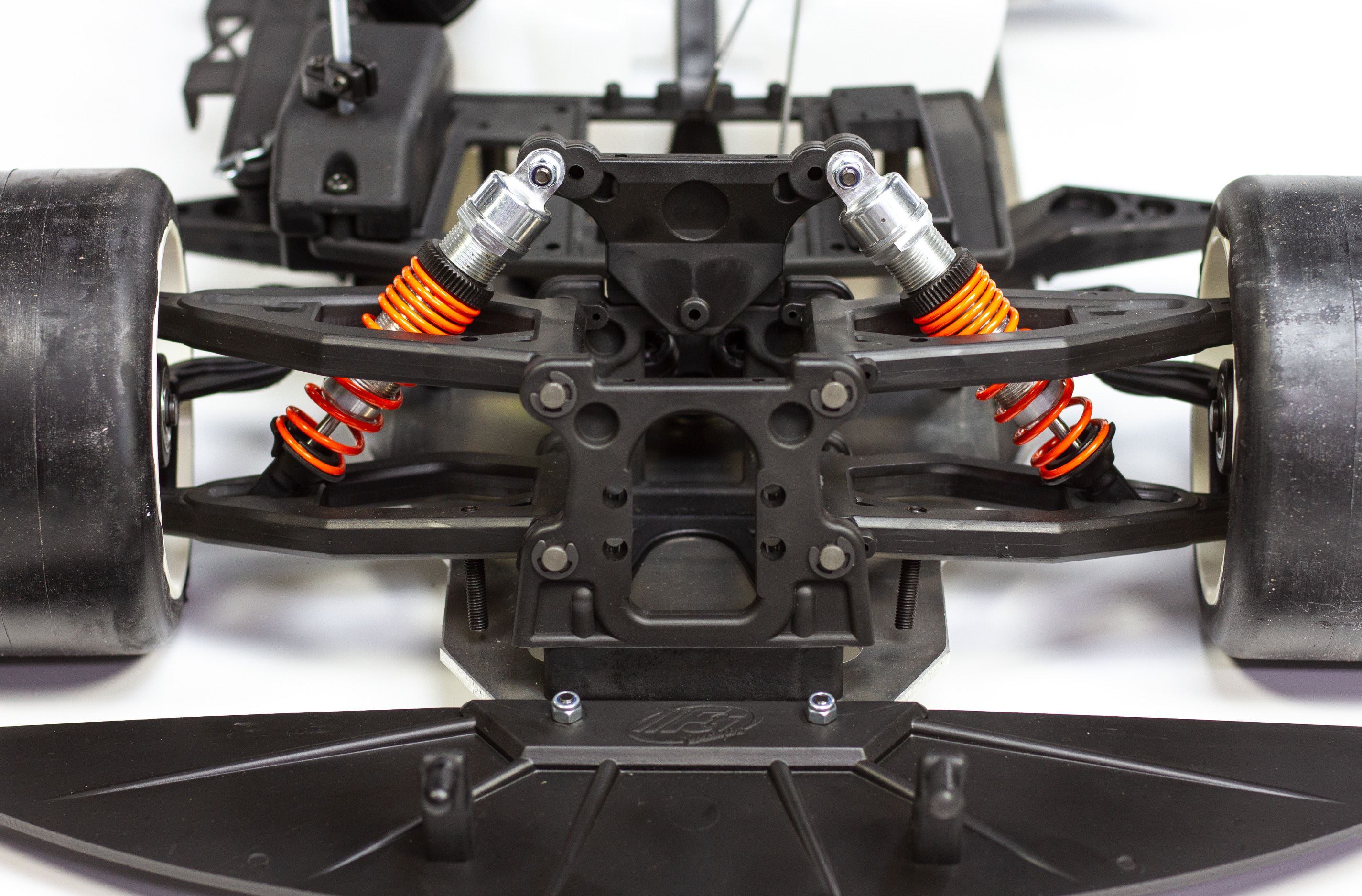

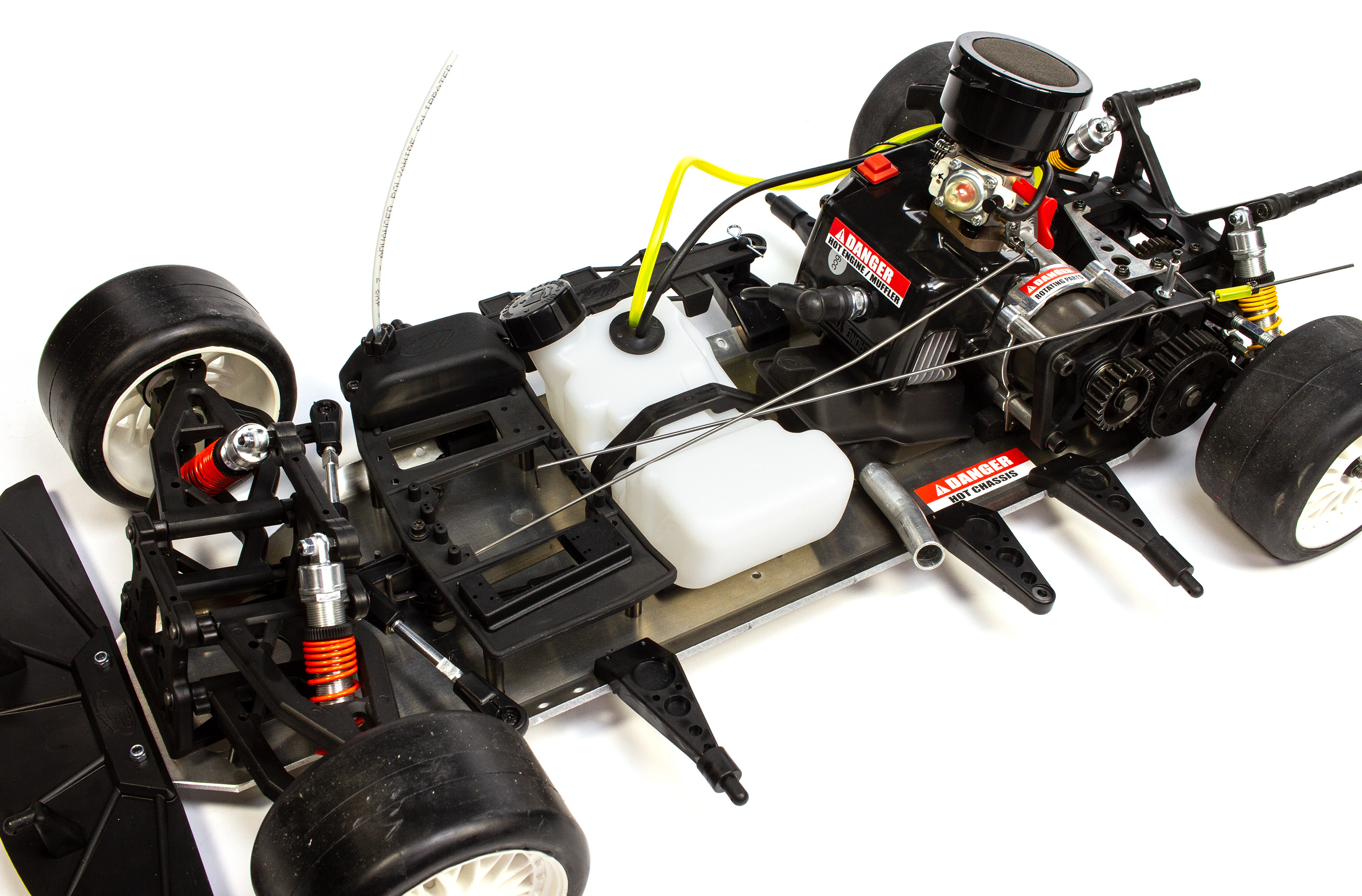

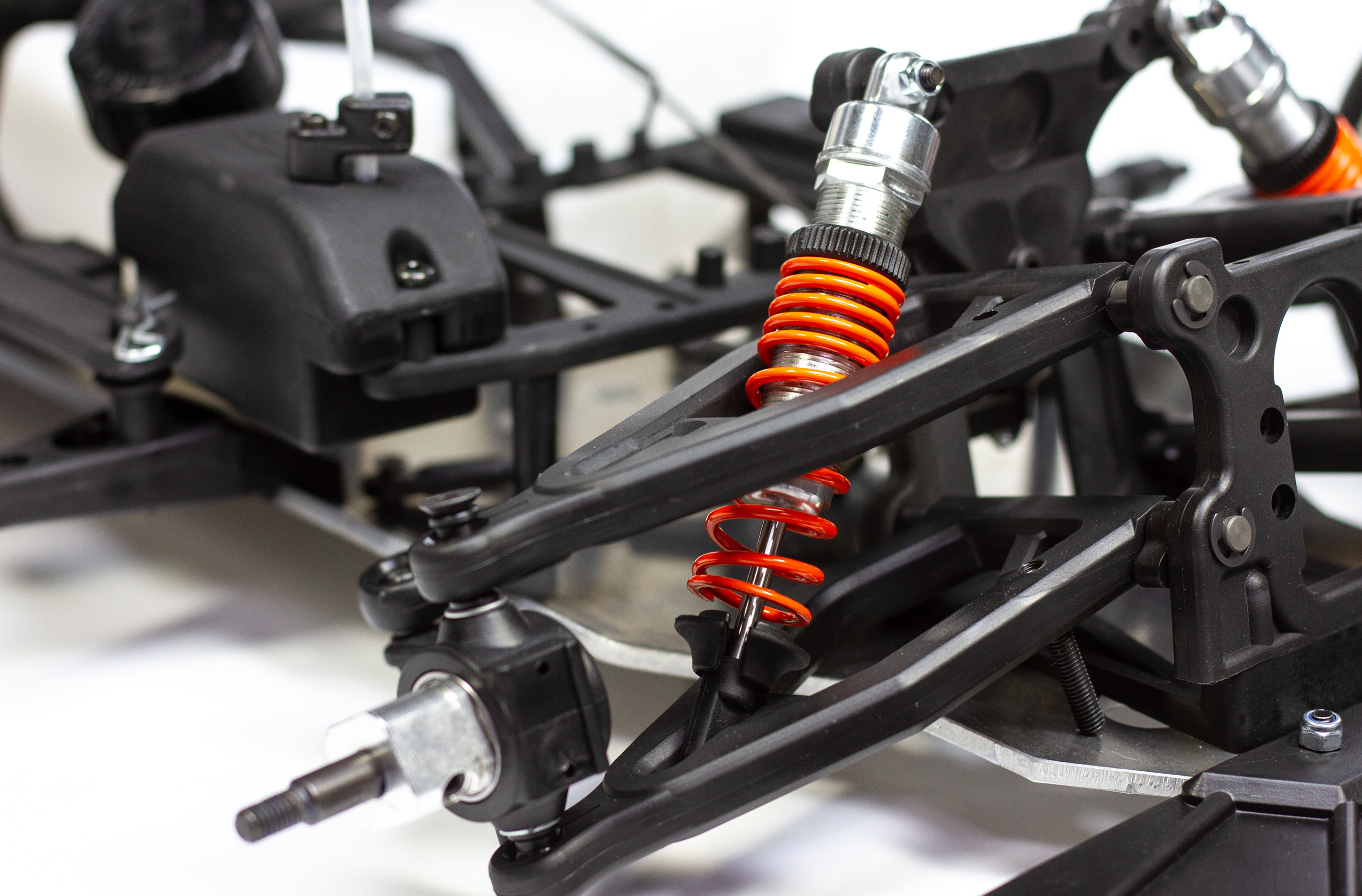

The model has a 510 wheelbase. The models are built on a 4 mm alloy chassis with double wishbones at front and rear axle. All borings of the alloy chassis are countersunk to prevent the screw heads from bearing out. The models are serial equipped with the 2-damper front axle which guarantees an optimal traction of both front wheels. At the front/rear axle you can adjust through track rods or adjusting screws with right-/left-handed thread the king pin angle, trailing effect and toe-in.

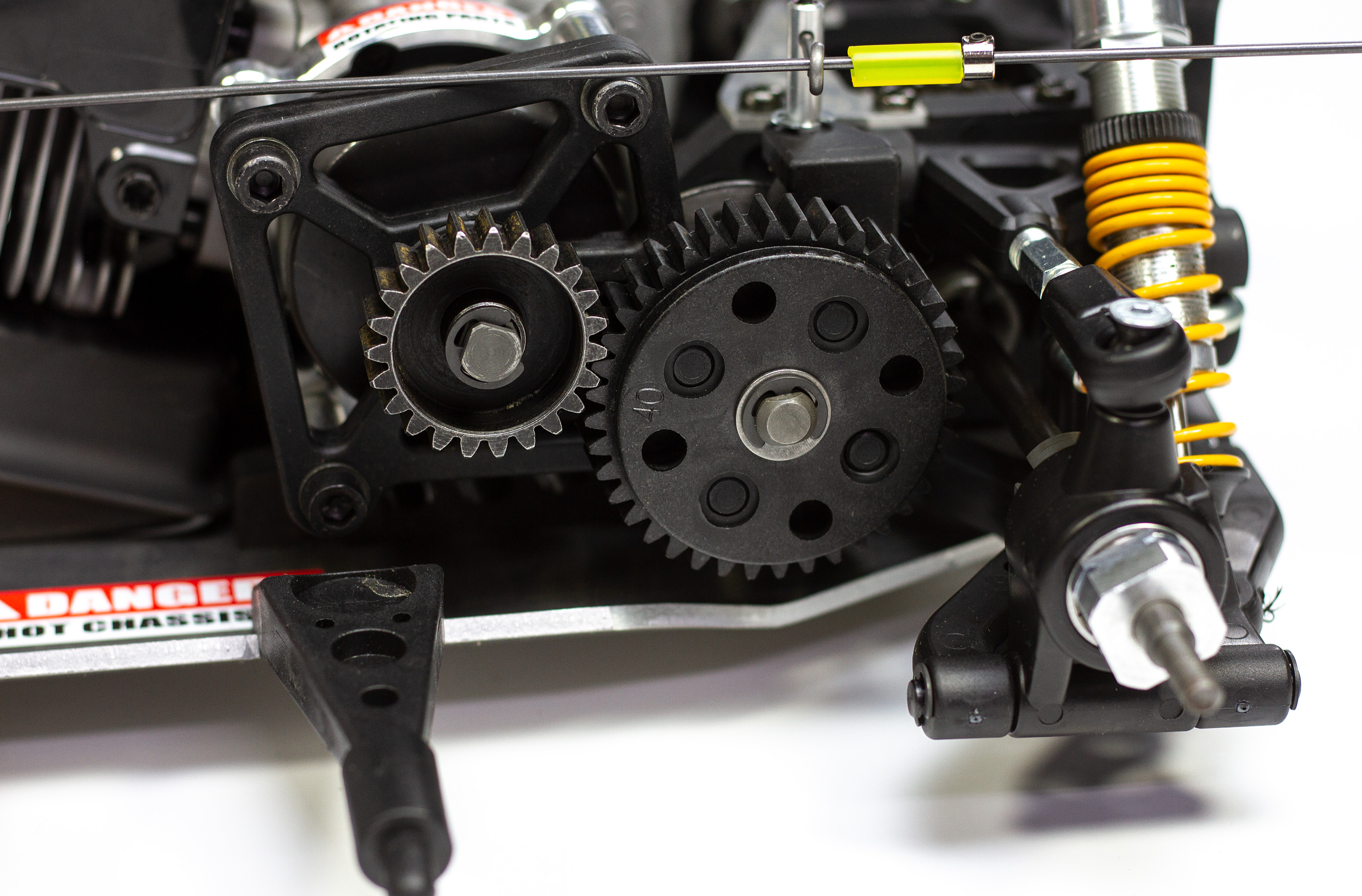

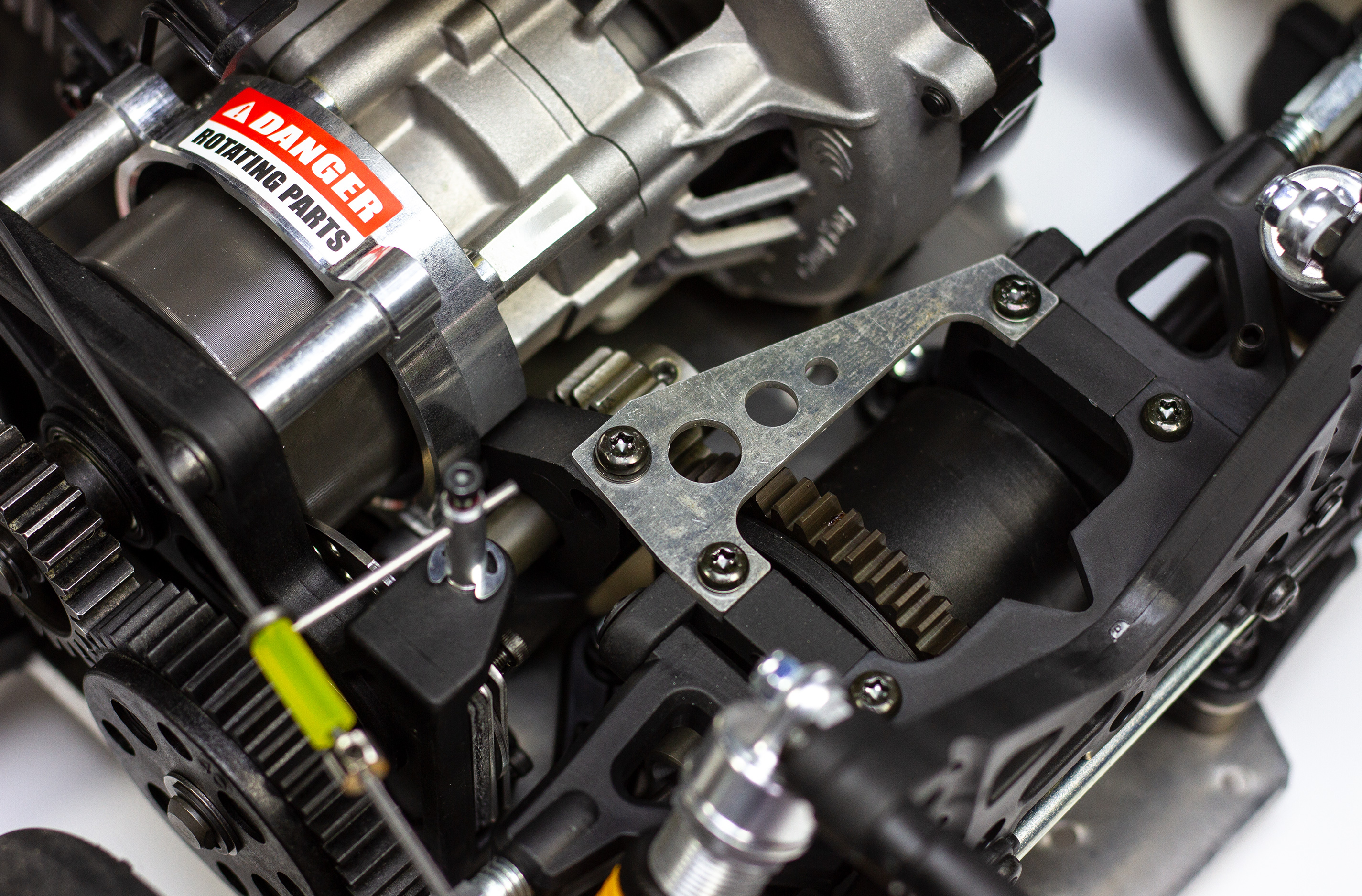

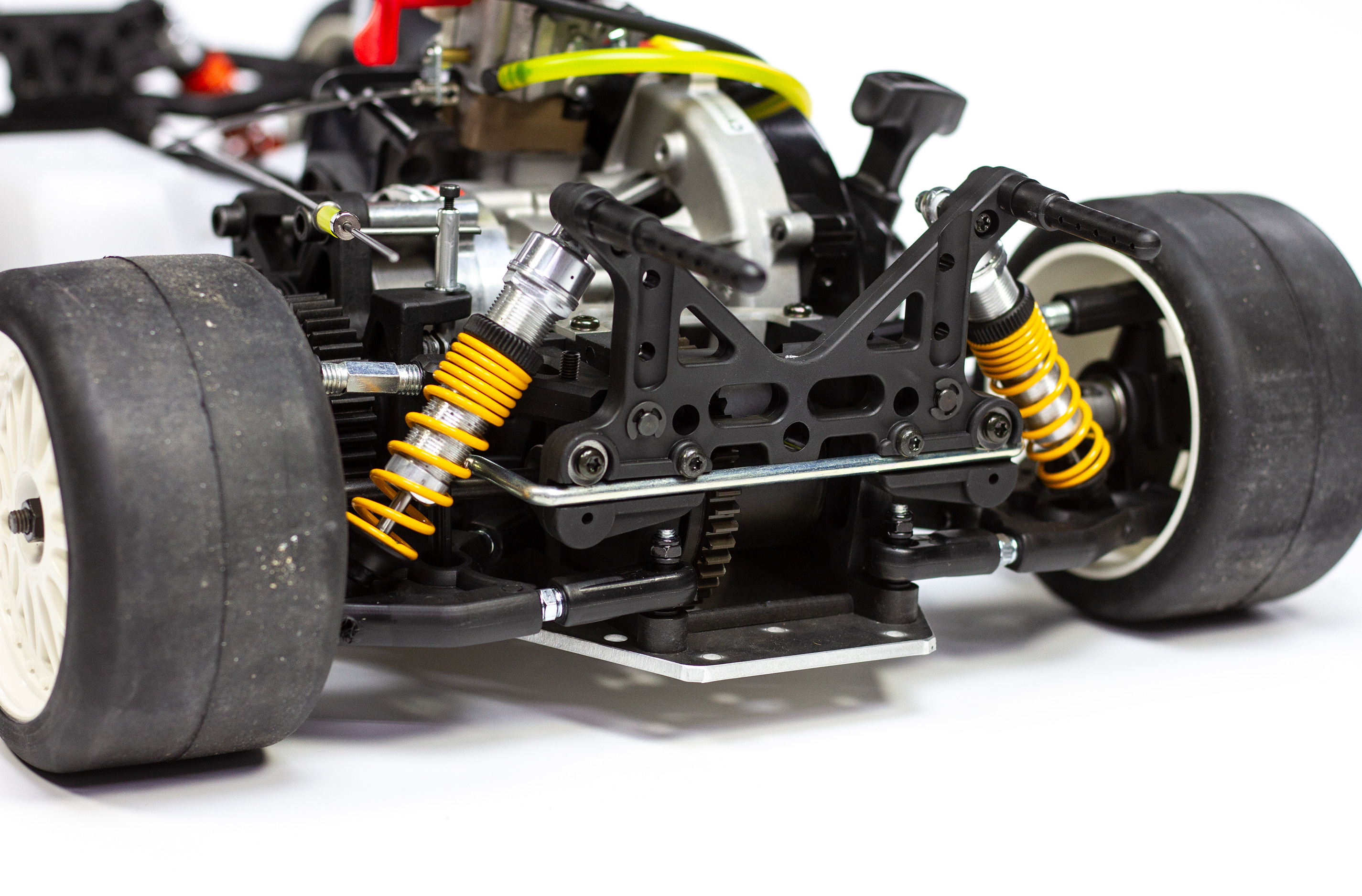

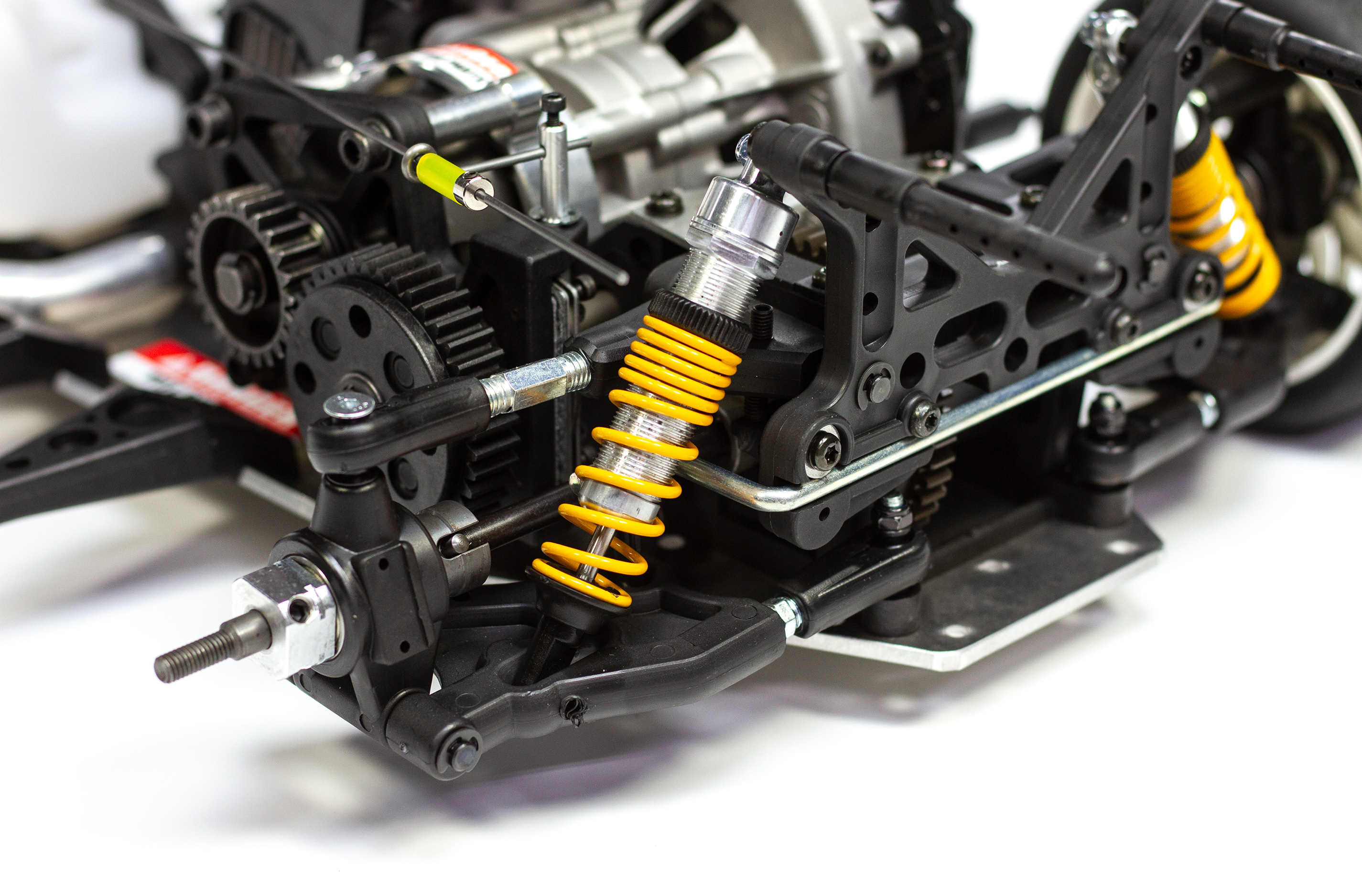

Further equipment points are differential gear, 24 teeth steel pinion, oil-pressure shock absorbers with volume control and external adjusting ring for the initial spring preload. All rotating parts as shafts, axles and clutch bells a.s.o. are supported by ball bearings.
The remote control, the two servos and the receiver battery (RTR set!) are required to operate the FG model. This RTR equipment is available in our shop selection for an additional fee.

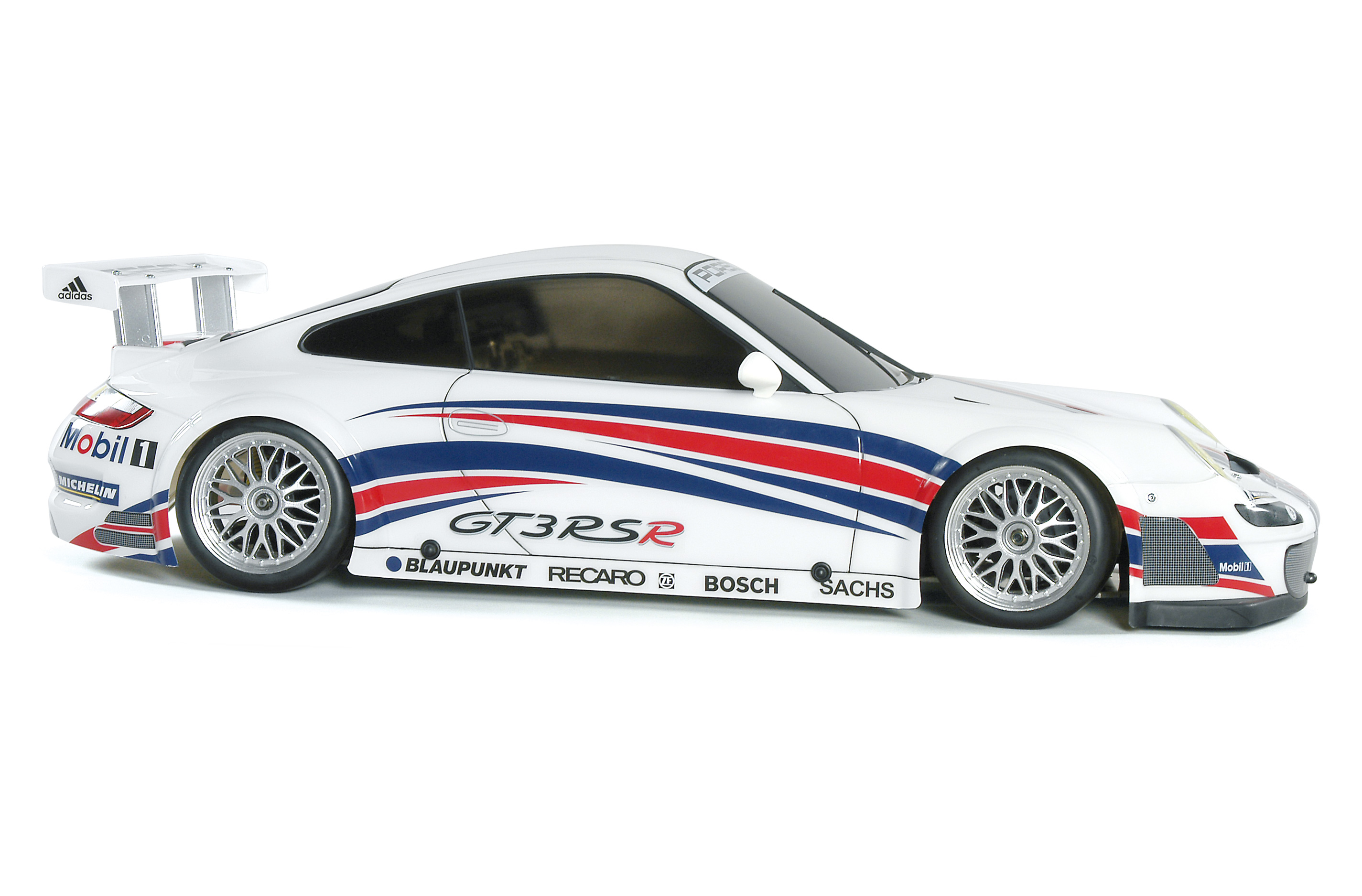

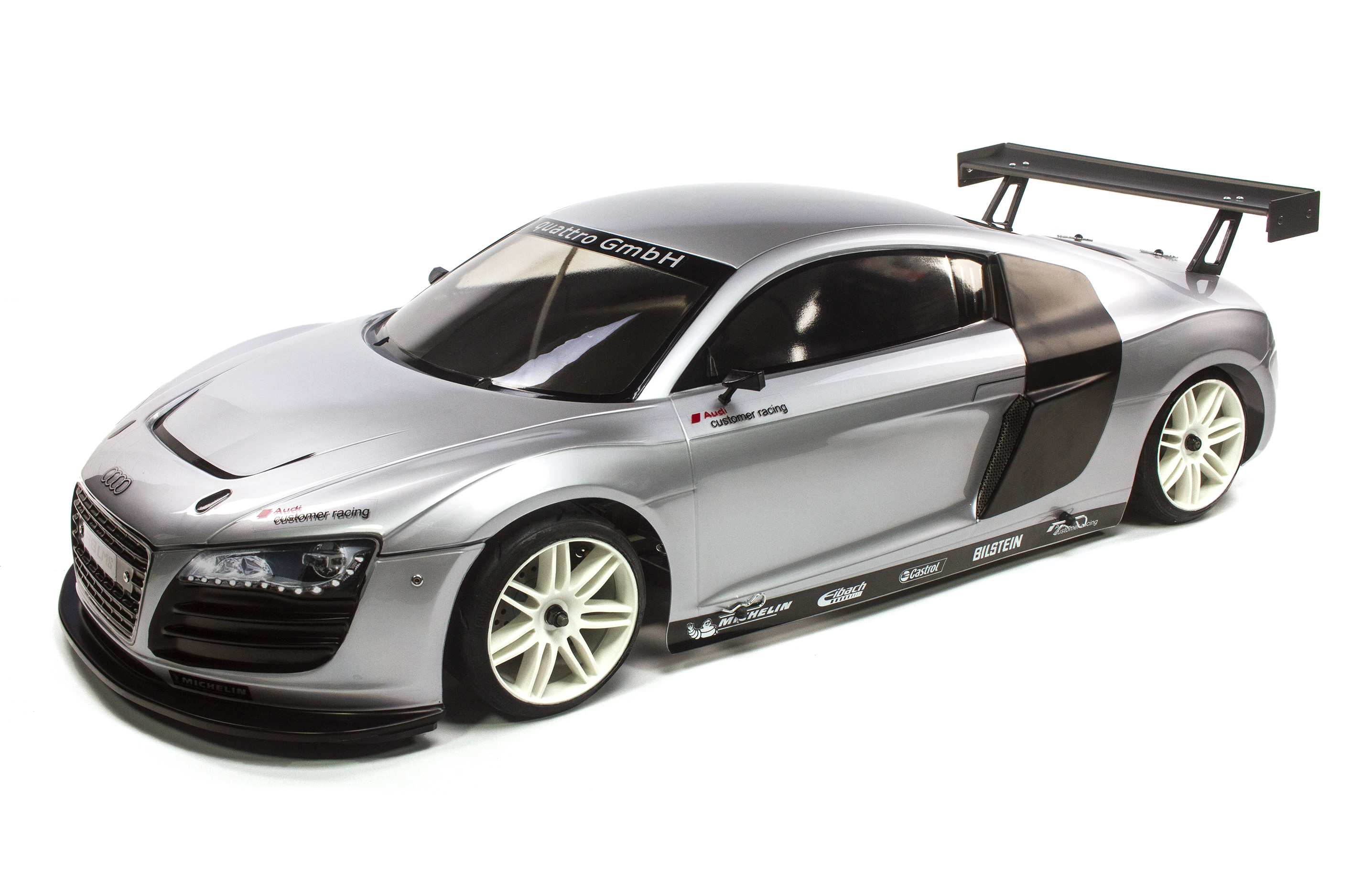

The body shell is clear, but also available in a painted version in our shop selection for an additional fee.
The body shell is clear, but also available in a painted version in our shop selection for an additional fee.
Thanks to the numerous available option parts, you can upgrade your FG Challenge Line as required.
You can select the car with complete RTR-equipment from the options menu.
RTR-equipment
RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed.
- Transmitter: Reflex Wheel Pro III 2,4 GHz
- Receiver: Mini BEC
- High power servo for throttle and brake
- Largescale servo for steering
- Tx-battery, rx-battery
Dimensions:
- Length: 870 mm
- Width: 392 mm
- Height: 260 mm
- Wheelbase: 510 mm
| Drive: | 2WD |
|---|---|
| Motorization: | Gas |
| RTR: | RTR to choose |
| Scale: | 1/5 |
