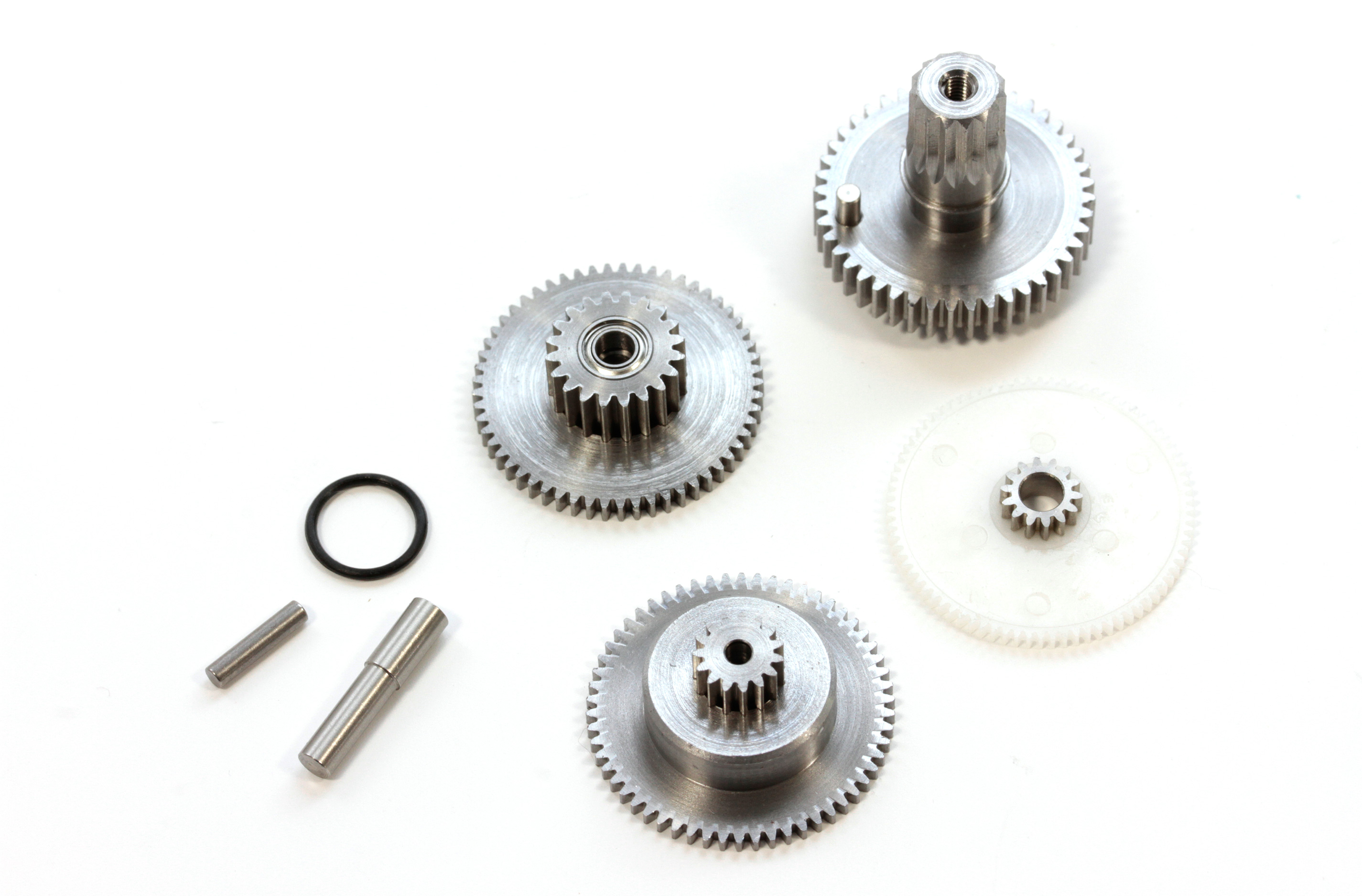

893255 Multiplex Rhino Pro SHV digi 4 complete replacement gear, set
Product number:
mpx_893255
EAN:
4041033052945
Product information "893255 Multiplex Rhino Pro SHV digi 4 complete replacement gear, set"
Genuine Multiplex spare/option part.
Spare part for the Rhino Pro SHV dig 4 Servo.
Inhalt:
Spare part for the Rhino Pro SHV dig 4 Servo.
Inhalt:
- 1 Set
