2012-280 Mecatech Performance Kit 2019

Genuine Mecatech spare/option part. The new Mecatech Big Bore shock absorbers with piggy back volume compensation reservoirs use normal silicone oil. The increased diameter in combination with the separate volume compensation via a floating piston of the new MecaTech Big Bore shocks allows for a very constant driving. This results in improved traction and optimized handling.The Big Bore shocks fit most 1/5 scale onroad cars.The outstanding craftsmanship guarantees a perfect seal; the shocks come w/o springs. The Big Bore shocks feature aluminum shock ends with replaceable bushings. Technical specifications: Total length: 120 mmDistance of mounting holes: 110 mm center/centerMounting hole diameter: 4.10 mmThickness of shock ends: 6 mmMax shock/spring travel: 30 mmWeight without oil: 46 g eachWeight without oil with spring: 68 g eachRecommended silicone oil:Mecatech recommends silicone oil with a viscosity of 6,000 to 8,000 for the front axle and 3,000 to 5,000 for the rear.Content:1 set

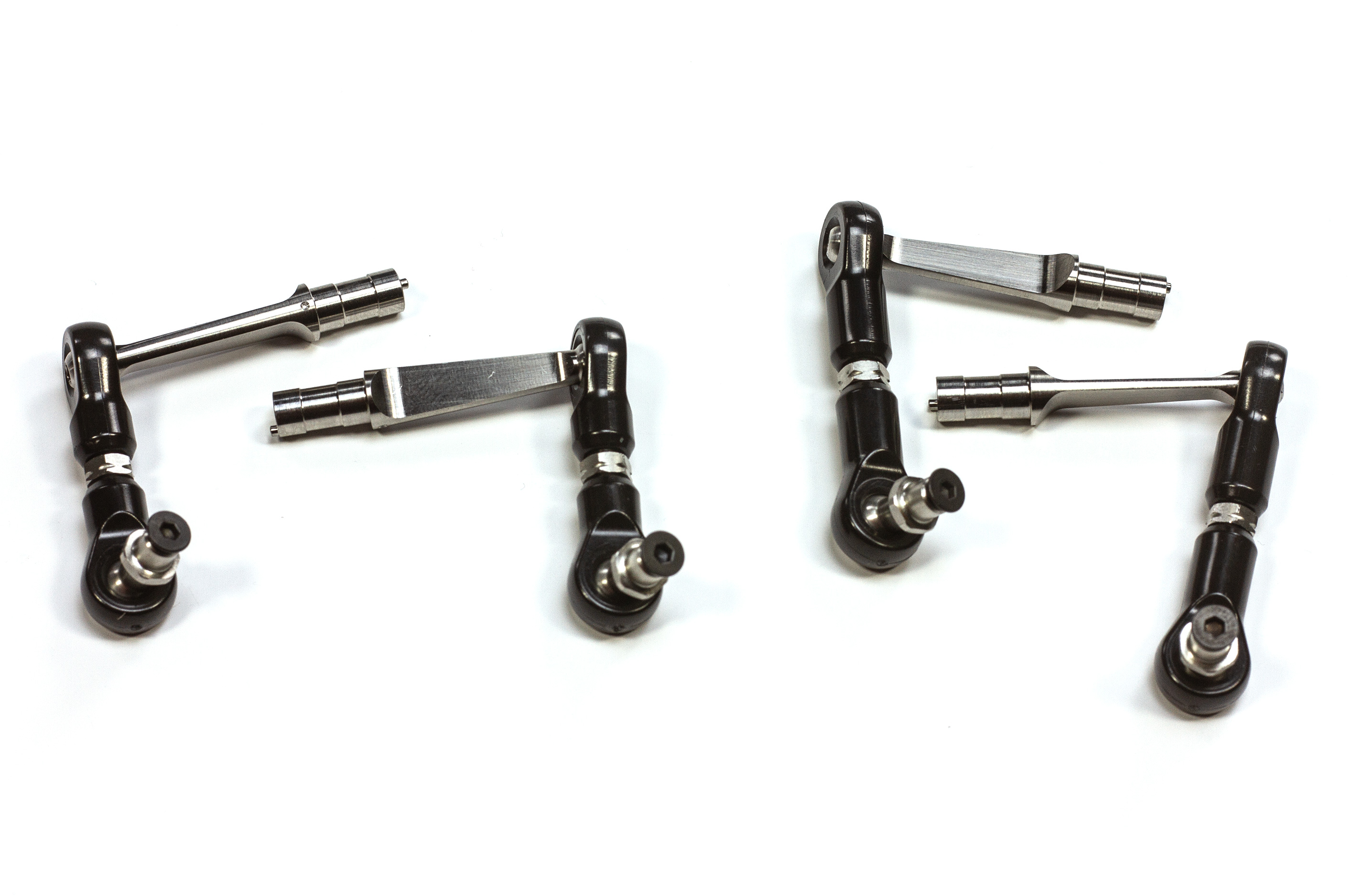

Complete set for steering, throttle and brake linkagesSet includes:3 x 6534/02 Throttle pivot post for 2 mm linkages 1 x y0132 y0132 Linkage rod for MecaTech brakes1 x 1213/10 Steel ball 7 x 6,5 mm1 x 66244, Ball joint 7mm M41 x 1213/11 Steering linkage l./r., M4 x 42mm1 x 6020 Set collar 2,1mm1 x 1018/01 Throttle linkage Evo 09 / Comp. 077 x Nut M32 x Screw M3 x 16 mm3 x Screw M3 x 18 mm 2012/501 Throttle linkage 2012/502 Brake linkage set 2012/503 Steering servo linkage set 2012/504 Throttle/brake servo horn The Servo arm is suitable for all servos with an output shaft with 25T spline shaft, for example:y2006 Digital Big-Scale Servo D-21HVNearly all Robbe/Futaba servosMega Power servoThunder Tiger DS1015Savöx servosand many more!

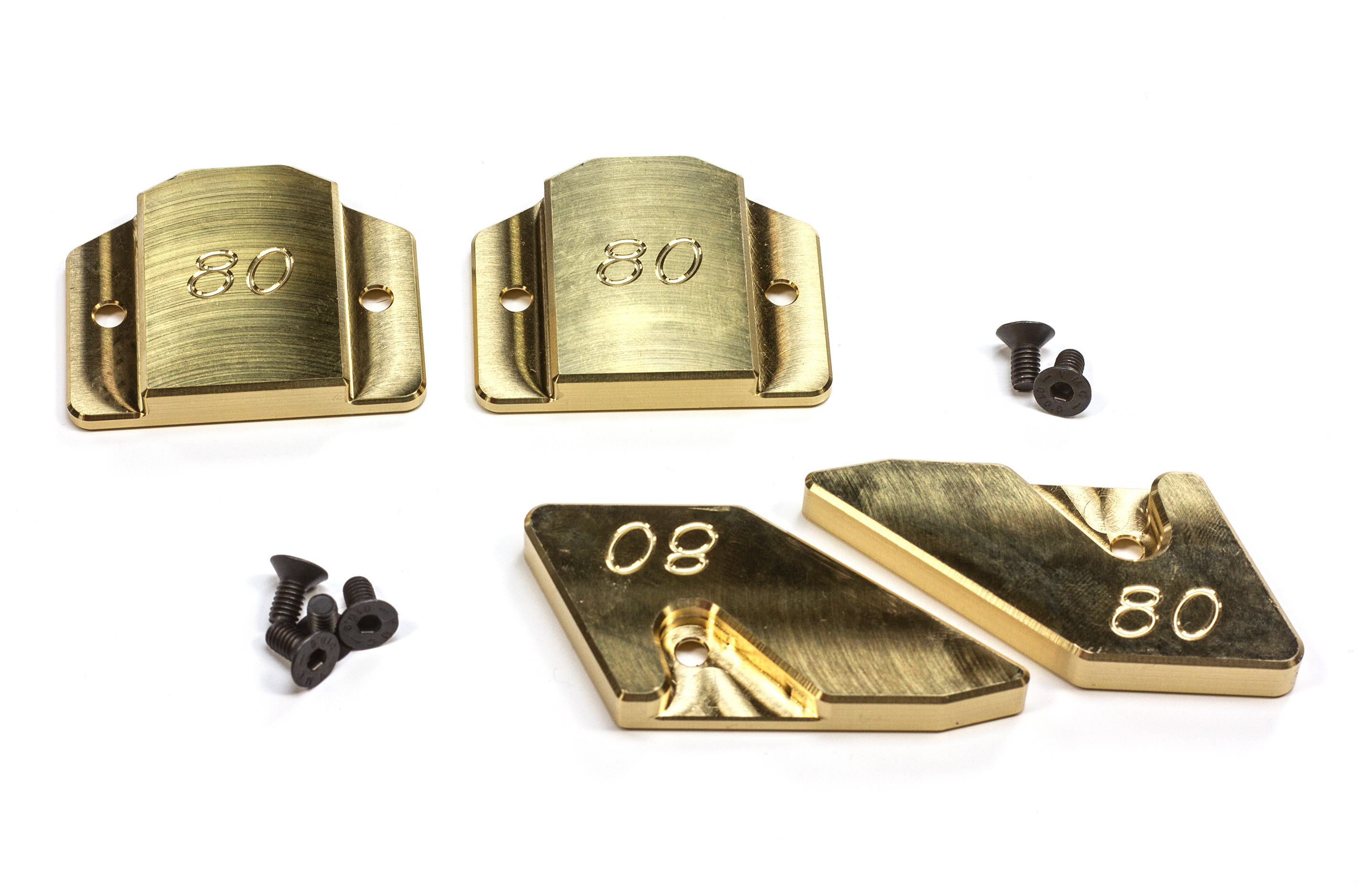

Because of the customised and complex production of the Mecatech FW 01, the lead time is currently 21 working days!The Mecatech FW01 is for sure the currently most innovative 1/5 race car designed for the dedicated and technically enthusiastic rc car driver.Everyone is enthusiastic about the perfectly fitting and precise workmanship at the highest level. Only high quality materials are used for the production.Since many years Mecatech is a well-know premium manufacturer of largescale hydraulic brakes or shocks and, as only a few may know, a technology expert for a number of Formula 1 racing teams!The Performance Kit from the FW01 is particularly intended for "racer" and differs from the Chassis Kit model by the Performance Kit. Here the list of parts are not including:DifferentialEngine Clutch, Airbox and tuned pipe systembody shell and tiresElectonic components such as servos, batteries and Remote controlPerformance Kit:engine brace left and rightfront stabilizer bar 2.75 mm titanium ready for installationrear stabilizer bar 1.75 mm titanium ready for installationthe two 80 gram front weightsthe two smaller 80 gram center weightsWith the Performance Kit the vehicle is quasi equipped as used at races!Stock gearing:Clutch pinion / spur gear: 36T / 64TLayshaft pinion / differential: 24T / 73TCurrently the Mecatech FW01 is for sure the benchmark of the 1/5 scale racing scene! In the first year Markus Feldmann won with his FW01 1: 5 Mecatech on one of the world's finest and most demanding race track in Lostallo / SwitzerlandMecatech is multiple German, European and World Champion with the FW01 and as the last result:Markus Feldman wins the European Championship in Tourlaville/France. All top 5 positions went to drivers running a Mecatech FW01. 7 out of 10 finalists cars were Mecatech FW01.Although the fit of the Mecatech FW01 parts makes the assembly of the car a great experience, some of our customers want to use the expertise of our shop and wish their FW01 fully assembled and tuned in by us! The complete assembly of your FW01 by our workshop is possible for an additional charge. Please note that the costs of the full assembly with servos a.s.o. do not include the price of any rc-components. If you do not have a suitable radio system with servos and batteries as well as switch and charger, you have to take an additional EUR 800 to EUR 1,500 for this equipment into account. We will be happy to make you an appropriate offer. We are currently waiting for the latest version of the Mecatech FW01. We are currently waiting for the latest version of the Mecatech FW01.Included in the chassis kit:- All pinions- clutch bell- Coupling fixation- All parts and screws for mounting the enginenot included:- differential- Engine and linkage- body shell and spoilers- Airbox- clutch - engine- Electronics- TiresWe are currently waiting for the latest version of the Mecatech FW01.

Because of the customised and complex production of the Mecatech FW 01, the lead time is currently 21 working days!The Mecatech FW01 is for sure the currently most innovative 1/5 race car designed for the dedicated and technically enthusiastic rc car driver.Everyone is enthusiastic about the perfectly fitting and precise workmanship at the highest level. Only high quality materials are used for the production.Since many years Mecatech is a well-know premium manufacturer of largescale hydraulic brakes or shocks and, as only a few may know, a technology expert for a number of Formula 1 racing teams!The Basic Kit of the FW01 is especially intended for "switchers" and differs from the chassis kit in terms of the brakes and shock absorbers (included in the chassis kit). Here is a list of the parts that are required for completion:brakes, shocks and springs (Difference to Chassis Kit)DifferentialEngine Clutch, Airbox and tuned pipe systembody shell and tiresElectonic components such as servos, batteries and Remote controlStock gearing:Clutch pinion / spur gear: 36T / 64TLayshaft pinion / differential: 24T / 73TCurrently the Mecatech FW01 is for sure the benchmark of the 1/5 scale racing scene! In the first year Markus Feldmann won with his FW01 1: 5 Mecatech on one of the world's finest and most demanding race track in Lostallo / SwitzerlandMecatech is multiple German, European and World Champion with the FW01 and as the last result:Markus Feldman wins the European Championship in Tourlaville/France. All top 5 positions went to drivers running a Mecatech FW01. 7 out of 10 finalists cars were Mecatech FW01.Although the fit of the Mecatech FW01 parts makes the assembly of the car a great experience, some of our customers want to use the expertise of our shop and wish their FW01 fully assembled and tuned in by us!The complete assembly of your FW01 by our workshop is possible for an additional charge. Please note that the costs of the full assembly with servos a.s.o. do not include the price of any rc-components. If you do not have a suitable radio system with servos and batteries as well as switch and charger, you have to take an additional EUR 800 to EUR 1,500 for this equipment into account. We will be happy to make you an appropriate offer. We are currently waiting for the latest version of the Mecatech FW01.Included in the basic kit:- All pinions- clutch bell- Coupling fixation- All parts and screws for mounting the engineDoes not include- Brakes, shocks and springs- differential- clutch- body and spoilers- Airbox- Engine and linkage- Electronics- Tires
