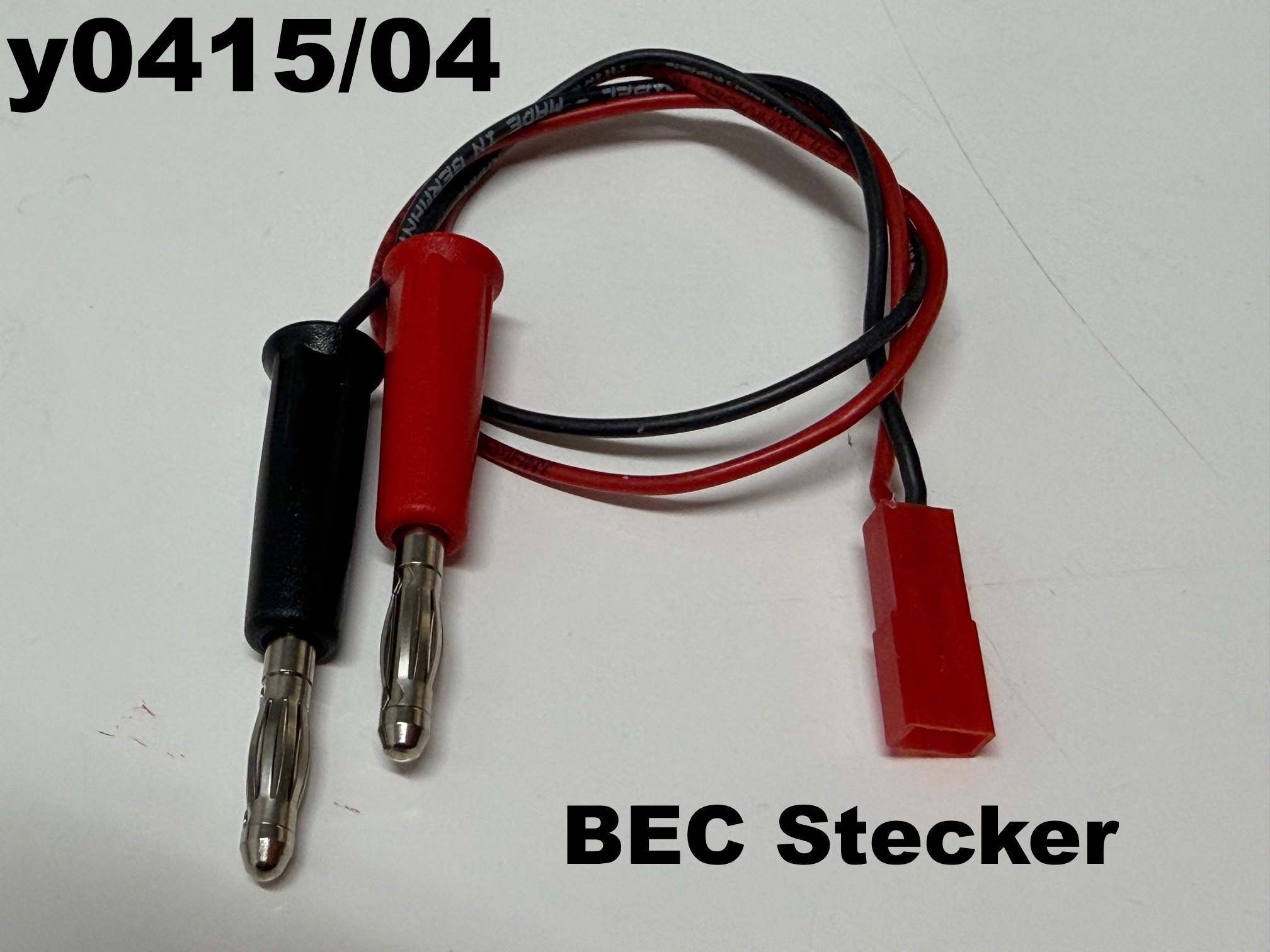

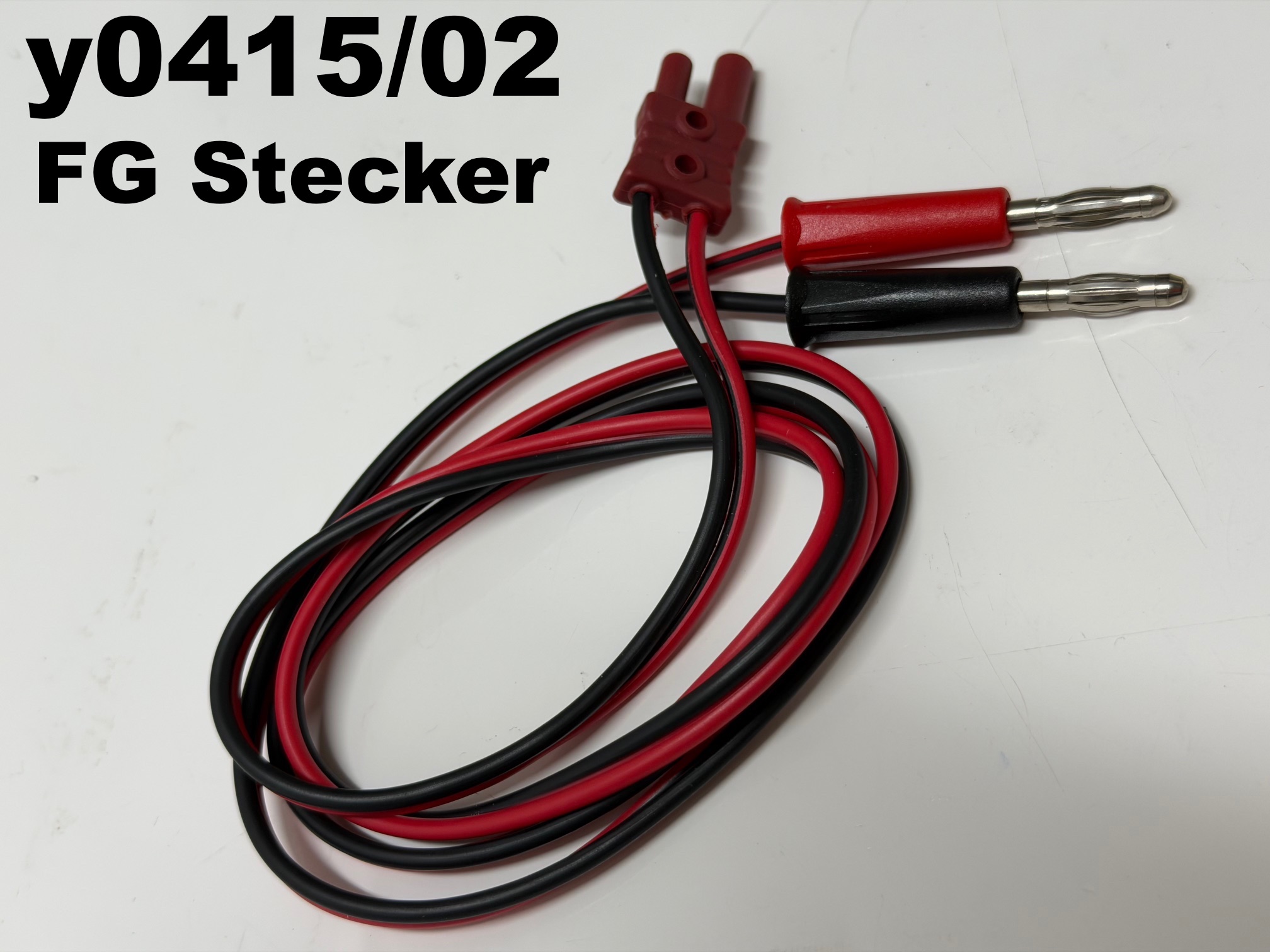

y0415 Receiver battery charging cable selection Futaba/FG/BEC

T-FHSS SR (SUPER RESPONSE) AND TELEMETRY T-FHSS:In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super Response) system that increased processing speed to further improve response. SR system does not support telemetry function. *R304SB and R304SB-E are not compatible with SR system.T-FHSS MINIZ SYSTEM:By changing to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42. Dedicated Kyosho receiver RA-42 requires purchase separately.FHSS MINIZ SYSTEM:By changing to the MI-FH system in the receiver setting menu, you can use Kyosho Mini – Z FH FS-RM005 module to connect to non-Evo Mini-z.TELEMETRY SYSTEM:The T4PM+ transmitter has adopted the newly developed bidirectional communication system “T-FHSS”.2.4 GHZ SS RADIO COMMUNICATION SYSTEM:Frequency channel setting is unnecessary: Channel shifting takes place within the 2.4 GHz band automatically. This system minimizes the interference from other 2.4 GHz systems.MODEL MEMORY FOR 40 MODELS:Model names can use up to 10 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.4-AXIS JOG BUTTON:The (JOG) button can be operated in 4 directions: up, down, left, and right.ESC-LINK FUNCTION (MC-LINK):This dedicated function allows you set up the Link software so that your T4PM can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC970CR, MC850C, MC851C, MC602C, MC402CR, etc.S.BUS SERVO:This is a special function that allows setting of the parameters of our S.Bus servo whose settings are changed by using PC Link software. In addition to the conventional wired system, it can be set wirelessly in combination with the R334SBS or R334SBS-E.STEERING MIXING:Smooth cornering is possible by independent left and right steering servo setting.BRAKE MIXING FOR LARGE CARS (BRAKE):Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.GYRO MIXING (GYRO MIX):The sensitivity of Futaba car rate gyros can be adjusted from the T4PM.4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPE (4WS):This function can be used with crawlers and other 4WS type vehicles.DUAL ESCS MIXING FOR CRAWLERS CARS (DUAL ESC):ESCs at the front and rear are controlled independently.CPS-1 MIXING (CPS MIX):LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.ANTI-SKID BRAKING SYSTEM (TH A.B.S):This function applies the brakes so that the tires of gas powered cars, etc. do not lose their grip on the road even when braking at corners.THROTTLE ACCELERATION (ACCEL):Gas power cars have a time lag before the clutch and brakes become effective. The throttle acceleration function reduces this time lag.THROTTLE SPEED (SPEED):Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.STEERING SPEED (SPEED):When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.RACING TIMER (TIMER):The lap timer can record 100 lap times and total time. The timer can also be started automatically by trigger operation. The race time and audible alarm can be set. Re-/fueling time are indicated by an audible alarm. An up timer is also provided.FUNCTION SELECT SWITCH (SWITCH)/DIAL FUNCTION (TRIM DIAL):This assigns functions to 2 switches and dials (digital trim, digital dial). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.TRIGGER POSITION CAN BE CHANGED:The position of the throttle trigger can be moved forward and backward.TENSION ADJUSTMENT FUNCTION:The tension of the steering wheel and throttle trigger springs can be adjusted from the outside.MECHANICAL ATL ADJUSTMENT:Make this adjustment when you want to decrease the total travel of the brake (push) side of the throttle trigger.YOUR T4PM-PLUS INCLUDES THE FOLLOWING COMPONENTS:T4PM-Plus TransmitterR304SBS ReceiverDry Battery HolderMini ScrewdriverTRANSMITTER SPECS:T-FHSS SR/T-FHSS/S-FHSS SYSTEM, WHEEL TYPE, 4 CHANNELSCOMMUNICATION METHOD: Bidirectional protocolMAXIMUM OPERATING RANGE: 100m (Except the MINIT system) (Optimum condition)FOR SAFETY: F/S, B-F/S, IDTRANSMITTER FREQUENCY: 2.4GHz bandRF POWER OUTPUT: 100mW EIRPPOWER REQUIREMENT: (Dry Cell Battery) Penlight x 3 (4.5 V)CURRENT DRAIN: 150mA or lessTRANSMISSION ANTENNA: 1/2λ di-poleR304SBS Specs:T-FHSS SRSIZE: 33.9 x 22.3 x 11.3 mmWEIGHT: 7.5gOPERATING VOLTAGE: DC 3.7-7.4VR304SB Specs (optional):T-FHSSSIZE: 35.1 x 23.2 x 8.5mmWEIGHT: 6.6gOPERATING VOLTAGE: DC4.8-7.4VR304SB-E Specs (optional):SIZE: 35.1 x 23.2 x 12.5mmWEIGHT: 7.0gRATED VOLTAGE: DC4.8-7.4VOPERATING VOLTAGE: DC4-8.4VNever use the R304SB-E receiver in GP cars/boats

Genuine FG spare/option part. Dimensions:Length: 123 mmWidth: 246 mmHeight: 37 mmContents:1 piece

LiPo batteries with Spektrum Smart technology practically take care of themselves. When combined with a Spektrum Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant its connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition. Thats a Smart Battery pack!Spektrum Smart technology is about offering a higher connection to your hobby. Its a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipmentall the while making your hobby easier. The combined result will make you wish everything about your hobby was smarter. Spektrum Smart LiPo Batteries are a part of a wide series of Smart technology products now available.Feature OverviewYoull never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger Start button. Smart technology takes care of the rest.Every Smart LiPo battery is factory assembled with the next-generation IC3 or IC5 output connector thats conveniently compatible with older devices equipped with robust EC3 and EC5 connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.Spektrum Smart LiPo Batteries Store Unique Data, such as:Battery BrandBattery TypeBattery CapacityBattery C RatingIndividual Cell VoltageBattery TemperatureCharge/Discharge CyclesSpektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery youve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the Start button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.Specification:Application: SurfaceBattery Type: Smart LiPoBattery Voltage: 7.4VCapacity: 4000 mAhConnector Type: IC3Height: 1.2 in. (30mm)Length: 3.5 in. (90mm)Number of Cells: 3Weight: 170gWidth: 1.3 in. (34mm)Contents:1 piece

Genuine HT spare/option part. 5 cells, 6 volt, cell size Sub-C. More applications on request.Dimensions: approx 112 x 46 x 23 mmContents:1 piece

Genuine HT spare/option part.JR/Futaba/Universal female to female extension, Length approx. 10 cm.Useful for wiring of the receiver inside the UFRC GX1 RX-box or similar applications. Contents:1 piece

Genuine FG spare/option part. Heavy duty servos 2WD and 4WD 1/5 and 1/6 models. Ball-bearinged with metal gears.Speed: 0.22s-0.20s/60°Torque: 26 - 28kg/cmDimensions : 59,5 x 29,5 x 51,3 mmVoltage: 6.0-7.4VWeight: 154gContents:1 piece
